Biomechanical parameters of marram grass (Calamagrostis arenaria) for advanced modeling of dune vegetation

This study investigates the biomechanical properties of marram grass (Calamagrostis arenaria, formerly Ammophila arenaria) over a 12-month period on the island of Spiekeroog, Germany, to enhance the modeling of coastal dune dynamics. The research reveals significant seasonal variations in the stiffness and Young modulus of the vegetation, with higher values observed in winter, indicating increased mechanical resistance important for dune stability during storm events. In summer, increased flexibility and density are prominent, enhancing dune accretion. To account for these dynamics, the study emphasizes the importance of incorporating seasonally adjusted parameters into models, particularly accounting for the increased horizontal density, the presence of flower stems in summer, and the longer leaf lengths in winter. The differentiation among plant parts is highlighted, with flower stems providing the highest structural support due to their greater stiffness, while leaves contribute more to flexibility and dynamic responses. Interestingly, the minimal differences between green and brown leaves suggest that these can be treated similarly in modeling efforts, simplifying parameterization without compromising accuracy. Additionally, the study found no consistent evidence that wind exposure significantly affects the biomechanical properties of marram grass, suggesting that wind influence may not need to be factored into biomechanical models. The results also demonstrate that the biomechanical properties of marram grass are broadly transferable between fixed and dynamic dune systems, supporting their applicability across various coastal environments. The key outcome of this research is the detailed compilation of the biomechanical traits of marram grass's aboveground vegetation, reflecting the seasonal dynamics found in dune processes, which will serve as a valuable resource for future modeling efforts of dune vegetation and their surrogates.

1 Introduction

Coastal dunes are among the most dynamic ecosystems on Earth, characterized by various types of feedback between aeolian transport, vegetation growth, and sediment dynamics (Hesp, 2002; Hacker et al., 2012; Zarnetske et al., 2015; Strypsteen et al., 2019). They act as natural coastal barriers, mitigating storm impacts and protecting inland areas from flooding (Martínez and Psuty, 2004; Feagin et al., 2015; Ruggiero et al., 2018). Besides their protective function, dunes support high ecological diversity and provide essential ecosystem services, including freshwater provision, carbon sequestration, and sediment stabilization (Martínez and Psuty, 2004; Everard et al., 2010; Barbier et al., 2011; Röper et al., 2013; Ruggiero et al., 2018). The dynamic interactions between physical and biological processes result in high spatiotemporal complexity within dune systems (de Vries et al., 2012).

Understanding dune erosion and accretion is essential for defining their role in nature-based coastal defense strategies (de Vries et al., 2012; Feagin et al., 2015; de Battisti, 2021; González-Villanueva et al., 2023). Both short-term changes in dune morphology through individual storm events, such as erosion and deposition of sediment, and long-term trends influenced by sea level rise, sediment supply, wind field, human activity, and the stabilizing effects of vegetation (Keijsers et al., 2016; Gao et al., 2020; Hovenga et al., 2021; González-Villanueva et al., 2023) are crucial for accurately assessing and managing the protective functions of coastal dunes (Keijsers et al., 2016; Gao et al., 2020; Farrell et al., 2023; Husemann et al., 2024).

Coastal dunes, unlike engineered structures, adapt dynamically through natural processes like sediment transport and vegetation growth, enabling post-storm recovery and offering a system-dependent resilience to sea level rise (van Gent et al., 2008; van IJzendoorn et al., 2021; Mehrtens et al., 2022, 2023). Dynamic dune management supports these processes while promoting biodiversity and ecosystem services. Climate change may impact dune vegetation, altering species distribution and traits (Carter, 1991; Duarte et al., 2013; Gao et al., 2020; de Battisti, 2021; Biel and Hacker, 2021). Carter (1991), for example, stated that species tolerant to higher temperatures, drought, and sand burial may become more dominant in the future.

To simulate the interactions between vegetation, sand, wind, and water in dune environments, a range of numerical models, such as DUBEVEG (Keijsers et al., 2016; Husemann et al., 2024), AeoLIS (van Westen et al., 2024), and XBeach implementations (Schweiger and Schuettrumpf, 2021), as well as physical models have been developed. However, the accuracy of these models depends strongly on high-quality field data, which, to date, have not been systematically collected for the specific biomechanical properties of dune vegetation. In physical experiments, dune vegetation is commonly either omitted (van Gent et al., 2007; Tomasicchio et al., 2011; Figlus et al., 2011; Mehrtens et al., 2024), modeled using real vegetation despite its limited scalability (Figlus et al., 2014; de Battisti and Griffin, 2020; Silva et al., 2016; Maximiliano-Cordova et al., 2019; Feagin et al., 2019), or substituted with simplified mimics such as wooden dowels (Bryant et al., 2019; Kobayashi et al., 2013; Türker et al., 2019) that inadequately reflect mechanical plant behavior (Garzon et al., 2021). To overcome these limitations, physical models increasingly rely on surrogate vegetation, meaning non-withering, physically stable structures derived from in situ characteristics of live plants and used in laboratory experiments. The accuracy of such representations depends not only on geometric traits but also on mechanical properties such as shoot stiffness and flexibility, which govern how vegetation interacts with environmental stressors like wind and water flow (Bouma et al., 2013).

Most advances in vegetation modeling for nature-based solutions (NbS) in coastal protection have focused on salt marsh species, aiming to improve representations of plant morphology, physiology, and hydrology (Liu et al., 2021; Keimer et al., 2024). These studies show that plant density and stiffness are key parameters influencing wave attenuation and shoreline protection (Shepard et al., 2011). Several have employed three-point bending tests to quantify biomechanical traits and assess seasonal or species-specific differences (see Table A1 in the Appendix). However, salt marsh and dune vegetation differ fundamentally: while salt marsh plants exhibit high flexibility and typically cope with hydrodynamic forces (Vuik et al., 2017; Bouma et al., 2014), dune grasses stabilize sediment primarily through stiffer shoots and extensive rhizome networks (Zarnetske et al., 2012; Figlus et al., 2022). As a result, transferring parameterizations from salt marsh systems to dune models is problematic and calls for dedicated biomechanical datasets for dune vegetation.

Despite the critical role of dune grasses such as marram grass (Calamagrostis arenaria, formerly Ammophila arenaria) in coastal defense, their biomechanical properties have received limited scientific attention to date (Feagin et al., 2015; Davidson et al., 2020; de Battisti and Griffin, 2020). de Jong et al. (2014) explicitly emphasized the lack of research and highlighted the importance of studying vegetation development, particularly with regard to vegetation density and rooting depth. Most previous work has focused on geometric and external traits, such as shoot height, while mechanical properties of individual plant components have rarely been quantified. Histological studies by Andrade et al. (2021) and Chergui et al. (2017) have explored internal structures, showing that stems mainly provide structural stability, while leaves exhibit high flexibility, allowing them to bend under wind exposure without structural failure. Given these functional differences, a biomechanical characterization that explicitly considers the mechanical role of each plant component is essential for improving the representation of dune vegetation in coastal models. A review by McGuirk et al. (2022) summarizes existing knowledge on dune vegetation and its role in sediment dynamics. However, methodological inconsistencies and imprecise terminology often complicate comparisons between studies. An overview of commonly reported traits for marram grass is provided in Table A2 in the Appendix; since then, little further research has appeared to fill the gap, and a better understanding of the biomechanics of dune vegetation remains crucial for improving modeling efforts.

Vegetation in coastal ecosystems, such as salt marshes, exhibits marked seasonality in its traits. For example, during the summer, plant length and density significantly increase, while in the winter, the stiffness of the vegetation is greater and the outer diameter smaller (Vuik et al., 2017; Foster-Martinez et al., 2018; Keimer et al., 2024; Li et al., 2024). The effects of seasonality and vitality on vegetation traits can significantly impact their biomechanical properties, which in turn may influence dune stability and resilience to environmental stressors (Baas and Nield, 2010; de Jong et al., 2014; Biel and Hacker, 2021). Similarly, dune dynamics also follow seasonal patterns. Dunes typically experience erosion during winter and accretion during summer, leading to cyclic variations in dune morphology (Montreuil et al., 2013; Pye and Blott, 2016; Rader et al., 2018). These processes are driven by seasonal variations in wind and wave action, which shape the dune landscape.

Although there is limited specific information on the seasonality of dune vegetation traits, it is known that marram grass has adapted to these dynamic processes. Regular sand burial is essential for its healthy growth, and without it, growth rates and relative abundance decrease significantly (Maun, 1998; Bonte et al., 2021), indicating an “escape” mechanism against certain nematode species (van der Putten and Troelstra, 1990; Bonte et al., 2021). During winter, the extensive root system of marram grass plays a crucial role in stabilizing the dunes by enhancing sediment properties, such as porosity, shear strength, and slope stability, thus reducing erosion and preventing uprooting during storm surges (Davidson et al., 2020; Walker and Zinnert, 2022). These interactions between seasonal vegetation traits and dune processes highlight the importance of incorporating seasonal variations into studies of dune vegetation properties to improve our understanding of their role in coastal defense.

In addition to seasonal influences, dune vegetation is subjected to external mechanical forces, such as wind or hydrodynamic loads, which can impact plant growth and biomechanical properties (Puijalon et al., 2005, 2011; Gardiner et al., 2016; Telewski, 2016; Du and Jiao, 2020; Kouhen et al., 2023). Plants respond to mechanical stress through different adaptive strategies, primarily classified as avoidance (minimizing frontal area) or tolerance (maximizing resistance to breakage). Species following the avoidance strategy tend to exhibit higher bending stiffness (Puijalon et al., 2011). Understanding these strategies is crucial for biomechanical characterization, as they determine how plants interact with environmental forces such as wind and waves. However, most studies on wind-induced biomechanical adaptations have focused on woody vegetation, such as trees, whereas their applicability to dune vegetation remains largely unclear. Given the significant role of wind in coastal environments, it is essential to investigate how dune vegetation responds to wind-induced mechanical stresses to improve our understanding of its biomechanical behavior.

Beyond mechanical forces, soil characteristics also shape vegetation properties. As dunes develop, changes in soil composition influence vegetation cover over the long-term (Isermann, 2011). In Europe, dune succession is often classified into white dunes, which are younger, more dynamic systems with active sand movements, and gray dunes, which are older, more stabilized formations with increased organic matter content (Isermann and Cordes, 1997). However, such classifications are not universally applied, and comparable successional stages may differ depending on regional environmental conditions. Whether these environmental differences influence the biomechanical properties of dune vegetation remains an open question, highlighting the need for site-specific assessments when integrating vegetation traits into coastal studies.

By addressing the following research questions, this study aims to fill the aforementioned knowledge gaps by providing a comprehensive biomechanical characterization of marram grass. This serves as a basis for improving vegetation modeling in experiments and contributes to a better understanding of dune vegetation dynamics, ultimately supporting the development of effective nature-based coastal protection strategies:

1. Are there significant seasonal variations in the biomechanical properties of dune vegetation that must be considered separately when modeling accretion processes (summer) and erosion processes (winter)?

2. Do different plant parts (sprouts, green leaves, brown leaves, flower stems) exhibit distinct biomechanical properties, or can they be treated as equivalent in biomechanical dune vegetation models?

3. Does wind exposure (e.g., windward vs. leeward sides of dunes) or directional exposure (e.g., northwestern vs. southeastern areas) affect the biomechanical traits of vegetation, and if so, how should these factors be considered in biomechanical modeling?

4. How do biomechanical properties differ between vegetation in fixed, established dune systems and more dynamic dune systems, and how does this variation influence the accuracy and transferability of surrogate models for dune vegetation?

2 Methods

2.1 Study area

Field measurements were conducted on the East Frisian island of Spiekeroog, which belongs to the North Sea barrier islands in Germany (see Fig. 1a–b). The chain of barrier islands extends from Texel, the Netherlands, to Fanø, Denmark, forming a landscape shaped by the littoral transport band driven by the counterclockwise rotation of the tides into elongated west–east forms, further detailed by the interactions of waves, currents, and wind (Pott, 1995). Located parallel to the coast, they isolate significant portions of the Wadden Sea from the open North Sea. From a geological perspective, these islands are very young, approximately 2000 years old, and were formed by an accumulation of Holocene marine sediments on a Pleistocene bed (Döring et al., 2021; Pollmann et al., 2018). By relocation of sandy sediments, pioneer dunes formed on the barrier islands and further evolved to dune chains reaching elevations of more than 20 m above sea level (Pott, 1995). The side of the dune chains averted from the ocean, the back barrier, is protected from high-energy wave action of the open sea and, moreover, is dominated by mild sedimentation conditions, allowing accumulation of fine-grained marine sediments and the development of salt marshes (Bakker, 2014; Pollmann et al., 2018). The geomorphology of the North Sea barrier islands is characterized by the predominance of sands, a low-lying coastal region, and high storm tide frequency (Pott, 1995). The wind conditions at Spiekeroog and the whole German North Sea are dominated by westerly winds, but in general wind directions are substantially fluctuating in this area (Hild et al., 1999; Röper et al., 2013; Deutscher Wetterdienst, 2020). Due to human activities, e.g., dredging, land reclamation, and a resulting alteration of the sand sedimentation processes, North Sea barrier islands are characterized by sand accumulation and a resulting narrow pointed island tip in the east. As a result, the geomorphology of the western and the younger eastern area of the barrier islands differs (Röper et al., 2013; Pollmann et al., 2018). Spiekeroog is located at a 5 km distance from the German mainland and is part of the national park Niedersächsisches Wattenmeer. As a major objective, the German national parks enable undisturbed natural dynamics and landscape processes; to that end, entering dunes is mostly prohibited. The eastern part of the island, the locally called Ostplate (in German, Ost means east and -plate means flat), is highly protected and developed eastwards between 1650 and 1960, so that Spiekeroog continuously grew several kilometers to its present east–west length of approx. 10 km (Röper et al., 2013). The older western area is characterized by a well-developed, fixed dune system consisting of white, gray, and brown dunes lined up from the beach in the north towards the center of the island (Isermann and Cordes, 1997; Pollmann et al., 2018). These dune types differ significantly with regard to soil type and predominant vegetation species (Boorman, 1988, unpublished; Davis, 2011; Röper et al., 2013). The white dunes of the Spiekeroog island are mainly covered by marram grass, which is native to the Atlantic coast of Europe (Pott, 1995; Röper et al., 2013; Pollmann et al., 2018), but due to worldwide planting for dune stabilization, it now colonizes dunes between 32° and 60° latitude on both sides of the Equator (Pickart, 2021).

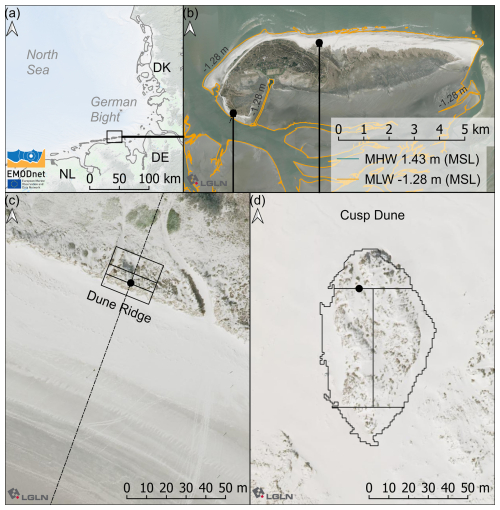

Figure 1 (a) Map of the German Bight with the focus area location. Based on EMODnet https://emodnet.ec.europa.eu/en/bathymetry (last access: 12 August 2024). (b) Tidal barrier island of Spiekeroog with tidal high and low water contour based on gauge data (GDWS, 2024) and digital elevation model (DEM) data (NLWKN, 2023) and the two dune locations marked. (c) Dune Ridge site and (d) Cusp Dune site – based on DEM data by Landesamt für Geoinformationen und Landesvermessung Niedersachsen (LGLN; in English the State agency for geoinformation and state survey of Lower Saxony) data (LGLN, 2024). Mean high water (MHW) and mean low water (MLW) are extracted from the DEM using gauge-related tidal water levels.

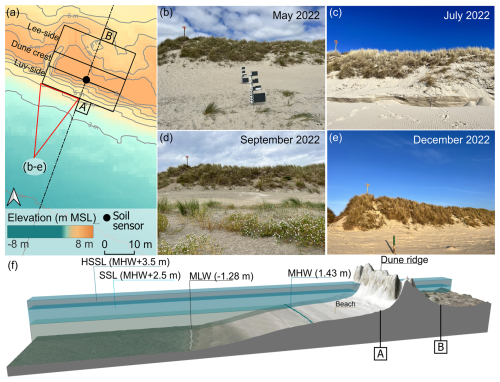

Figure 2 (a) Dune Ridge sectors with elevation based on a 2022 DEM (NLWKN, 2023) and positioning of the soil sensor. (b–e) View of the luv side of the dune at different months. (f) Cross-shore profile based on a 2022 DEM, vertically superelevated by a factor of 3. For details on soil sensor information see Appendix C4.

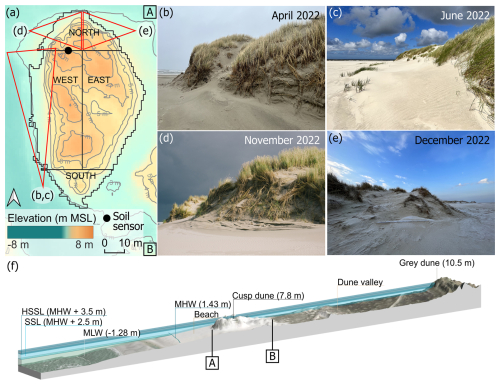

Figure 3 (a) Cusp Dune outline and sectors with elevation based on a 2022 DEM (NLWKN, 2023) and positioning of the soil sensor. View of the western slope of the dune (b) in April and (c) in June. (d) View of the northwestern edge in November and (e) view of the northeastern edge in December. View angles are indicated in panel (a) in red. (f) Cross-shore profile based on 2022 DEM. For details on soil sensor information see Appendix C4.

We conducted dune surveys at two white dune sites on the Spiekeroog island (Fig. 1b–d). The first site, referred to as Dune Ridge, is a 20 m wide strip of a dune chain located at the southwestern shore of the island (53.753460° N, 7.674701° E) and is part of the fixed dune system of the Spiekeroog island (Isermann and Cordes, 1997). The second site, termed Cusp Dune, is a freestanding dune situated at the northern beach near the transition to the Ostplate (53.778793° N, 7.725181° E), surrounded by dune breaches, and characterized by younger and mobile dune systems (Isermann and Cordes, 1997). These two sites have been selected due to their distinct environmental conditions. The Dune Ridge site is located in an area prone to erosion, necessitating regular reinforcement measures, and characterized by more narrow beaches. Approximately 800 m north of Dune Ridge, significant sand nourishments are periodically required to maintain the beach–dune system, with the most recent effort involving 80 000 m³ of sand in 2023 (NLWKN, 2023). In contrast, Cusp Dune is part of a more dynamic system, situated at the edge of the Ostplate, which is characterized by wide beaches and young morphological changes and is influenced by the west-to-east sediment drift typical for the North Frisian islands. Being a freestanding dune, Cusp Dune is surrounded by water during storm surges and thus exposed to both erosion and accretion processes. Erosion takes place mainly along the luv (windward) side facing the North Sea and sedimentation along its flanks along the blowouts. Distinct study areas were established at each site based on dune morphology and wind exposure to investigate the impact on biomechanical vegetation traits. The Dune Ridge site (Fig. 2) was divided into three zones based on wind exposure: luv side (sea-facing side, 160 m²), dune crest (135 m²), and lee side (land-facing side, 240 m²). The Cusp Dune site (Fig. 3) was segmented by directional exposure into four zones: North (N, 550 m²), East (E, 1490 m²), West (W, 1497.5 m²), and South (S, 350.5 m²). The dune toe was extracted from DEM data using a 5° slope as a delineation filter for both sites.

2.2 Field data collection

Field data were acquired monthly from January to December 2022 at the two dune sites. The data collection focused on (1) environmental parameters, (2) canopy height and horizontal density, and (3) plant sampling for laboratory analysis.

• Environmental parameters. Detailed measurements of environmental parameters, including soil temperatures via soil sensors at both dune sites (see Figs. 2 and 3), air temperature and precipitation, and wind forces, were collected. Furthermore, digital elevation models were evaluated. These data, along with methodological details and further findings, are provided in the Appendix (Sect. C).

• Canopy height and horizontal density. Canopy height and horizontal density (see also Fig. B1a–b, Sect. B1 in the Appendix) were measured in different quantities depending on the zone and dune site. For the Dune Ridge site, which consists of three zones (luv side, dune crest, and lee side), 20 measurements were taken in both the luv side and lee side zones and 10 measurements were taken at the dune crest per month. For the Cusp Dune site, which consists of four zones (North, East, South, West), 20 measurements were taken in both the North and South zones and 30 measurements were taken in the East and West zones per month. Height measurements, referred to as canopy height, were conducted with a ruler with an accuracy of 1 mm. Canopy height was determined as the mean of random measurements representing the lower and upper boundaries of the canopy. Horizontal density was assessed using a metal frame with an internal area of 20 cm × 20 cm. The number of individual shoots within the frame was manually counted to determine the horizontal density. During the flowering season, the number of flowers was also counted within the same area but recorded separately. These values were later extrapolated to 1 m². Measurements were taken at random locations with vegetation cover to equally represent dense and sparse areas. All measurements were consistently conducted by the same individual to minimize observer bias.

• Plant sampling. Plant sampling focused on the dominant species, marram grass. For the Dune Ridge site, 20 samples were collected from both the luv side and lee side zones and 10 samples were collected from the dune crest zone per month for further laboratory analysis (e.g., three-point bending tests). For the Cusp Dune site, 20 samples were collected from both the North and South zones and 30 samples were collected from the East and West zones per month. Individual shoots and, during the flowering season, an additional three flower stems (hereafter referred to as stems) per zone and month were cut at ground level using garden scissors. The cut was angled towards the west using a digital compass, leaving a point at the sample bottom pointing west. This method ensured that the orientation of the plant in the field could be tracked in the laboratory, maintaining consistent loading direction during biomechanical tests, which might be influenced by wind exposure (see also Sect. B2 in the Appendix).

2.3 Laboratory analysis

The laboratory analysis involved dividing the collected samples into their individual structural components and conducting three-point bending tests to assess their biomechanical properties.

• Sample preparation and plant parts. The sampled shoots of marram grass were divided into three main structural components: sprout, green leaf, and brown leaf. The sprout was defined as the lower part of the shoot up to the first branching leaf. In the laboratory, the sprout was separated from the shoot by cutting at this point. Leaves were also separated at their point of branching from the shoot. During the flowering season, stems, including the flower, were also collected and treated as a separate component, thus not requiring cutting (see also Sect. B2 in the Appendix). For each zone and month, 10 sprouts, three green leaves, three brown leaves, and, if applicable, three stems were analyzed. The samples were processed and tested within 1–2 d; prior to processing, they were stored upright in a vase-like container with a small amount of water to prevent wilting.

• Measurement of length and outer diameter. The length (L) and outer diameter (d_o) of each plant part were important geometric parameters for biomechanical analysis. Lengths were measured in centimeters using a tape measure with an accuracy of 1 mm, though the practical reading accuracy may be lower. The outer diameter was measured at the location where the three-point bending tests were to be conducted: at half the length ($L/\mathrm{2}$) for sprouts and stems and at one-third the length ($L/\mathrm{3}$) for leaves (see also Sect. B3 in the Appendix). These diameters were measured using a digital caliper with a resolution of 0.01 mm.

• Three-point bending tests. The three-point bending tests were performed according to ISO 178 (2019). Each plant part was cut into 6 cm long sections, with the measurement point of the outer diameter (d_o) located at the midpoint of these sections. The bending tests utilized a universal testing machine, the “zwickiLine Z0.5” by ZwickRoell GmbH & Co. KG (2024). This machine was equipped with a load cell, calibrated in compliance with DIN EN ISO 7500-1 (2018), ranging from 0.2 to 50 N. The displacement measurement had an uncertainty of 0.0830 mum. The loading edges and supports had radii of 5 mm, and the span between the supports (Δs) was 40 mm. The displacement rate was maintained at 0.05 mm s⁻¹, adhering to quasi-static deformation standards outlined by Liu et al. (2021). A preload of 0.05 N was applied to the samples before measurements commenced.

The bending tests produced force–deflection curves, which were essential for analyzing the mechanical properties of each sample. From these curves, the force (F) and deflection (D) were used to compute the bending stiffness ($K_{\mathrm{B}}=F/D$, hereafter referred to as stiffness) and Young modulus (E) of each sample, calculated from the initial slope of the force–deflection curve. Young's modulus, also known as the elastic modulus, quantifies the stiffness of a material and describes its resistance to deformation under an applied load. For plant components, it provides insight into their structural role, with a higher Young modulus indicating stiffer materials that deform less under mechanical stress, enhancing stability, and a lower modulus reflecting greater flexibility, enabling reconfiguration to reduce mechanical damage. In this study, the experimental determination of Young's modulus includes the geometry of the plant components through the second moment of area (I), which assumes a solid circular cross-section based on the outer diameter (d_o) of the sample:

$$\begin{array}{}\text{(1)}& I={\displaystyle \frac{\mathit{\pi }(d_{\mathrm{o}}{)}^{\mathrm{4}}}{\mathrm{64}}}.\end{array}$$

The following equation was used to calculate Young's modulus:

$$\begin{array}{}\text{(2)}& E={\displaystyle \frac{\mathrm{4}(\mathrm{\Delta }s{)}^{\mathrm{3}}F}{\mathrm{3}D\mathit{\pi }(d_{\mathrm{o}}{)}^{\mathrm{4}}}}.\end{array}$$

In this study, the deflection range selected was between 0.4 and 1.2 mm, based on the initial linear portion of the force–deflection curve observed across all samples. The flexural stiffness (EI) was then calculated by multiplying Young's modulus (E) by the second moment of inertia (I). The maximum force (F_max), also referred to as the breaking force, was determined as the peak value on the force–deflection curves (Zhu et al., 2020; Liu et al., 2021). For marram grass, failure is more accurately characterized by folding rather than breaking. The flexural strength (σ) was then calculated using the equation

$$\begin{array}{}\text{(3)}& \mathit{\sigma }={\displaystyle \frac{\mathrm{40}{d}_{\mathrm{o}}{F}_{\text{max}}}{\mathrm{8}I}}.\end{array}$$

The results from the bending tests provide a valuable dataset (Kosmalla et al., 2024) of the plant components, such as Young's modulus (E), stiffness (K_B), flexural stiffness (EI), and flexural strength (σ). These parameters are vital for understanding the mechanical behavior of marram grass, which plays a crucial role in the resilience and adaptation of dune ecosystems. In particular, Young’s modulus (E) reflects the material stiffness of plant tissues, determining their ability to withstand mechanical stress, with higher E values indicating increased resistance to bending and deformation under waves, wind, and sediment transport forces. Previous studies have shown that plant stiffness is a key factor in counteracting mechanical forces in coastal environments (Bouma et al., 2005; Paul et al., 2016), highlighting its potential role in dune stabilization.

2.4 Data analysis

To streamline the data analysis process and enhance the interpretation of the results, the monthly data were aggregated into seasonal intervals. The seasons were defined as “summer” (April to September) and “winter” (October to March). This categorization reflects the primary dune dynamics: erosion processes, which predominantly occur in winter, and accretion processes, which mainly happen in summer (Pye and Blott, 2016). This differentiation aims to capture potential seasonal variations in the biomechanical properties of marram grass, relevant for experimental modeling of natural dune dynamics. An exception to this seasonal aggregation was made for the analysis of wind influence and dune site comparisons, where year-round data were considered.

For the analysis of biomechanical properties, the data from both dune sites were aggregated. This includes parameters such as canopy height, horizontal density, number of flowers, and the biomechanically relevant properties of the individual plant components (sprout, green/brown leaf, stem): length, outer diameter, stiffness, and Young's modulus. Exceptions include the investigation of wind influence, where data from Dune Ridge were compared between the windward (luv) and leeward (lee) sides. For Cusp Dune, the zones were aggregated into Northwest (North and West) and Southeast (South and East). This approach for Dune Ridge is based on the assumption that the landward side is more sheltered from the wind, while for Cusp Dune, it is more directly based on the actual wind conditions during the study year. For the comparison between dune sites, the data for each site were aggregated across all months and zones. Given that our data were not normally distributed, the nonparametric Mann–Whitney test was employed to assess the significance of observed differences among our samples. The Mann–Whitney statistic tests for differences between two groups on a single, ordinal variable without assuming a specific distribution of the data (Bauer, 1972). In total, 1543 sprout samples (Dune Ridge: 491; Cusp Dune: 1052), 831 green leaf samples (Dune Ridge: 227; Cusp Dune: 614), 823 brown leaf samples (Dune Ridge: 224; Cusp Dune: 599), and 389 stem samples (Dune Ridge: 115; Cusp Dune: 274) were investigated. The aggregated data were analyzed using Mann–Whitney tests to statistically examine the following comparisons:

1. Biomechanical differences between plant parts. The biomechanical parameters (K_B, E, d_o, L) of sprouts, green leaves, brown leaves, and stems were compared seasonally to determine whether different plant parts exhibit distinct biomechanical properties. This analysis aggregated data from both dune sites.

2. Seasonal variations. The biomechanical parameters (K_B, E, d_o, L) of each plant part were compared between the “summer” (April to September, relevant for accretion processes) and “winter” seasons (October to March, relevant for erosion processes) to detect any significant seasonal variations in the biomechanical properties of the dune vegetation. This analysis aggregated data from both dune sites.

3. Impact of wind exposure and directional exposure. The biomechanical parameters (K_B, E, d_o, L) of each plant part were compared for the Dune Ridge site between the windward (luv side) and leeward (lee side) zones and for the Cusp Dune site between the Northwest and Southeast zones to evaluate the influence of wind exposure and directional exposure on biomechanical traits.

4. Differences between dune systems. The biomechanical parameters (K_B, E, d_o, L) of each plant part from the Dune Ridge (fixed, established dune system) and Cusp Dune (more dynamic dune system) sites were compared. For each plant component, data from the entire site, aggregated across all months and zones, were compared between the two dune systems to investigate how biomechanical properties differ between these two types of dune systems.

3 Results

3.1 Seasonal variations in biomechanical properties of marram grass

3.1.1 Geometric characteristics

Canopy height, horizontal density, and number of flowers

Canopy height (Fig. 4a) showed no significant difference between summer (79.66±15.62 cm) and winter (79.87±13.38 cm) measurements (p=0.3429). Horizontal density (Fig. 4b), however, was significantly higher in summer (493.49±217.97 shoots m⁻²) compared to winter (445.65±209.93 shoots m⁻², p<0.001). The number of flowers (Fig. 4c), observed only in summer, was on average 108.86±92.50 flowers m⁻². The results of the statistical analysis are provided in the Appendix (Sect. D, Table D1).

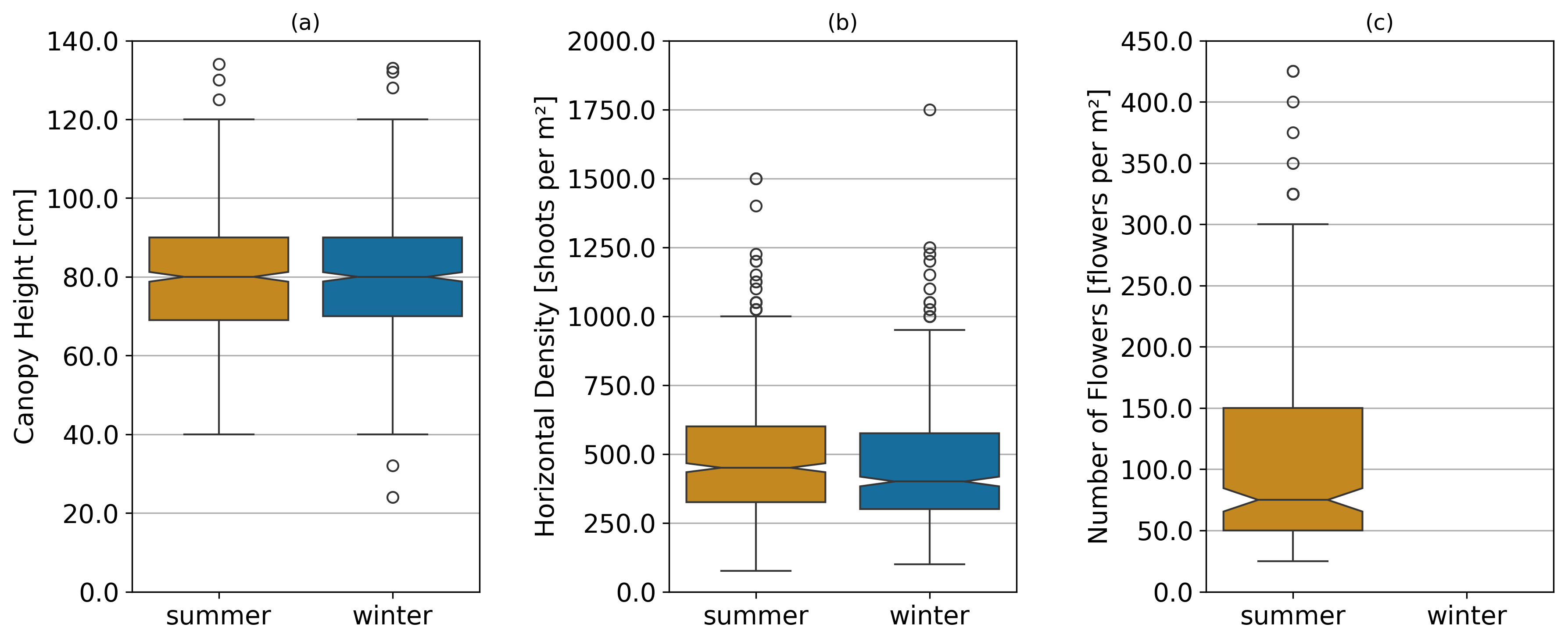

Figure 4 Combined data from both dune sites showing (a) canopy height in cm, (b) horizontal density in shoots per m², and (c) number of flowers in flowers per m² comparing summer and winter illustrated as boxplots. Note that no flowering was observed in winter, and thus not corresponding bar is shown for this season in panel (c).

Length and outer diameter of plant components

The seasonal length and outer diameter of plant components are shown in Fig. 5a and b, respectively. Sprouts showed no significant seasonal variation in length between summer (18.28±5.11 cm) and winter (15.37±4.45 cm, p=0.196). The outer diameter of sprouts also remained consistent across seasons (summer: 3.24±0.53 mm; winter: 3.10±0.51 mm; p=0.909). Green leaves exhibited a significant increase in length during winter (51.47±8.94 cm) compared to summer (44.35±8.14 cm, p<0.001). The outer diameter of green leaves was significantly larger in summer (1.69±0.22 mm) than in winter (1.57±0.20 mm, p<0.001). For brown leaves, the length increased significantly from summer (43.80±6.93 cm) to winter (47.82±7.95 cm, p<0.001). The outer diameter of brown leaves did not show significant seasonal variation between summer (1.72±0.26 mm) and winter (1.67±0.21 mm, p=0.199) measurements. The length and outer diameter of stems were consistently measured in summer only, showing on average a length of 64.94±10.87 cm and an outer diameter of 2.78±0.39 mm. The results of the statistical analysis are provided in the Appendix (Sect. D, Tables D2 and D3).

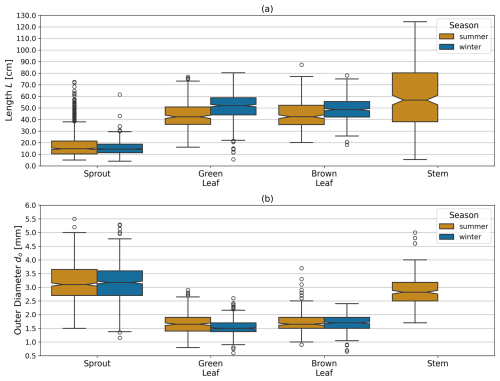

Figure 5 Combined data from both dune sites showing (a) mean length L and (b) mean outer diameter d_o of plant components (sprout, green leaf, brown leaf, stem) comparing summer and winter illustrated as boxplots. Note that no stems were observed in winter.

3.1.2 Mechanical characteristics

Stiffness

Stiffness showed significant seasonal variations in some plant components. To highlight the similarities between sprout and stems, these components are displayed together, while green and brown leaves, which exhibit distinct stiffness patterns, are presented in a separate plot (Fig. 6). For sprouts, stiffness was significantly higher in winter (4.15±1.59 N mm⁻¹) compared to summer (3.98±1.46 N mm⁻¹, p<0.001). Green leaves also exhibited a significant seasonal difference, with higher stiffness in winter (0.33±0.13 N mm⁻¹) than in summer (0.29±0.11 N mm⁻¹, p=0.001). Brown leaves showed no significant seasonal variation in stiffness (0.70±0.46 N mm⁻¹ in summer and 0.47±0.18 N mm⁻¹ in winter, p=0.077). Stems were only measured in summer, with a mean stiffness of 5.30±1.65 N mm⁻¹. The results of the statistical analysis are provided in the Appendix (Sect. D, Tables D2 and D3).

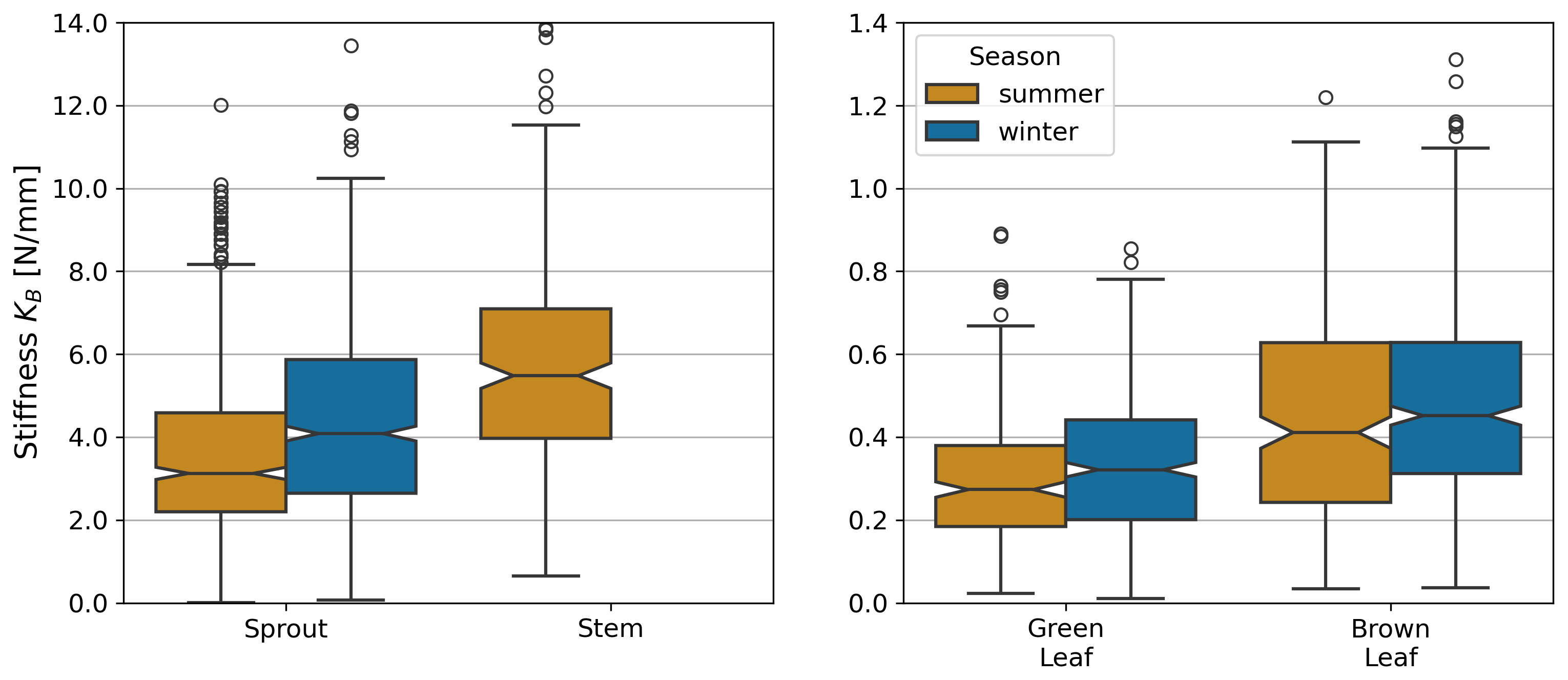

Figure 6 Stiffness K_B of each plant component in summer and winter months, based on combined data from both dune sites. 18 outlier values for brown leaves and 1 for stems were excluded for visual clarity. Note that no stems were observed in winter.

Young's modulus

Young's modulus displayed notable seasonal variations for certain plant components (Fig. 7). For sprouts, Young's modulus was significantly higher in winter (1173.47±479.92 MPa) compared to summer (1175.85±563.72 MPa, p<0.001). Green leaves also exhibited considerable seasonal differences, with Young's modulus being greater in winter (1585.21±624.35 MPa) than in summer (1215.16±526.92 MPa, p<0.001). In contrast, brown leaves did not show significant seasonal variations in Young's modulus (1790.77±809.09 MPa during summer and 1837.46±855.73 MPa in winter, p=0.898). Measurements for stems were only taken in summer, with a mean Young modulus of 2641.05±1152.78 MPa. The results of the statistical analysis are provided in the Appendix (Sect. D, Tables D2 and D3).

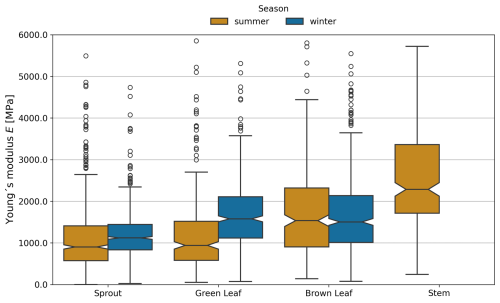

Figure 7 Young's modulus E of each plant component in summer and winter months, based on combined data from both dune sites. One outlier value for sprouts, four for green leaves, nine for brown leaves, and five for stems were excluded for visual clarity. Note that no stems were observed in winter.

3.2 Comparison of biomechanical traits among plant parts

Significant differences in the biomechanical parameters stiffness (K_B), Young's modulus (E), outer diameter (d_o), and length (L) were found between all plant components (sprout, green leaf, brown leaf, stems) in both summer and winter (all p<0.001), with the exception of Young's modulus between sprouts and green leaves in summer (p=0.319), Young's modulus between green and brown leaves in winter (p=0.399), and the outer diameter and length between green and brown leaves in summer (p=0.830 and p=0.611, respectively).

For stiffness (Fig. 6), all plant parts exhibited significant differences. In summer, stems had the highest stiffness values, followed by sprouts, brown leaves, and green leaves. During winter, the pattern remained consistent, excluding stems. In terms of Young's modulus (Fig. 7), stems exhibited significantly higher values compared to other plant parts in summer. Brown leaves, green leaves, and sprouts followed. This order persisted in winter, excluding stems. Notably, there were no significant differences between sprouts and green leaves in summer and between green and brown leaves in winter. For length (Fig. 5a), stems were significantly longer than the other parts in summer, with green leaves, brown leaves, and sprouts following. This trend remained in winter, excluding stems. In summer, no significant difference was found between green and brown leaves. Regarding outer diameter (Fig. 5b), sprouts had the significantly largest diameters in summer, followed by stems, brown leaves, and green leaves. In winter, the pattern remained consistent, excluding stems. The only exception was between green and brown leaves in winter, where the difference was not significant. The results of the statistical analysis are also provided in the Appendix (Sect. D, Table D4).

3.3 Impact of wind exposure on biomechanical traits

Stems exhibited no significant differences in any of the measured parameters (K_B, E, d_o, and L) between luv and lee side or the Northwest and Southeast sides, respectively. For Dune Ridge (Figs. 8–10), the stiffness and Young modulus of sprouts were significantly greater on the lee side (4.40±1.92 N mm⁻¹ and 1374.14±708.41 MPa) compared to the luv side (3.31±1.82 N mm⁻¹ and 1048.84±796.39 MPa, p<0.001 for both parameters). Green leaves exhibited significantly greater stiffness (0.35±0.17 N mm⁻¹), Young modulus (1910.30±1094.54 MPa), and length (52.44±12.27 cm) on the lee side compared to the luv side (0.28±0.15 N mm⁻¹, 1423.17±842.79 MPa, and 44.92±10.13 cm), with p values of 0.010, 0.002, and <0.001, respectively. Brown leaves showed no significant differences in stiffness, Young's modulus, and outer diameter between the luv and lee side. However, the length of brown leaves was significantly greater on the lee side (48.62±11.87 cm) compared to the luv side (43.28±10.13 cm, p=0.003). Overall, all found trends at Dune Ridge indicate that the values of the respective parameters are significantly greater on the lee side than on the luv side. For Cusp Dune (Figs. 8–10), Young's modulus (1162.39±693.30 MPa) and the length (17.20±8.32 cm) of sprouts were significantly greater on the Northwest side compared to the Southeast side (1069.36±637.48 MPa and 16.51±9.51 cm, with p values of 0.020 and 0.015, respectively). Green leaves showed no significant differences in stiffness, Young's modulus, and length between the Northwest and Southeast sides. However, the outer diameter of green leaves was significantly greater on the Southeast side (1.63±0.34 mm) compared to the Northwest side (1.57±0.31 mm, p=0.030). Brown leaves exhibited significantly greater stiffness (0.60±0.81 N mm⁻¹) and Young modulus (1686.62±1041.84 MPa) on the Northwest side compared to the Southeast side (0.47±0.51 N mm⁻¹ and 1581.99±1450.23 MPa, p=0.002 and p=0.015, respectively). While there is a tendency for the parameters stiffness, Young's modulus, and length to be greater in the Northwest, the outer diameter tends to be larger in the Southeast. At both dune sites, the most significant differences were observed in the Young modulus parameter, followed by stiffness and length, with the outer diameter showing the weakest differences.

Figure 8 Comparison of luv side and lee side at Dune Ridge as well as the Northwest side and Southeast side at Cusp Dune with boxplots showing length L for each plant part, based on year-round data.

Figure 9 Comparison of luv side and lee side at Dune Ridge with boxplots showing stiffness K_B for each plant component, based on year-round data. To improve clarity, sprouts and stems are grouped together due to their similar mechanical characteristics, while green and brown leaves are shown separately to emphasize their distinct behavior. Note that 33 outlier values for brown leaves and 2 for stems were excluded for visual clarity.

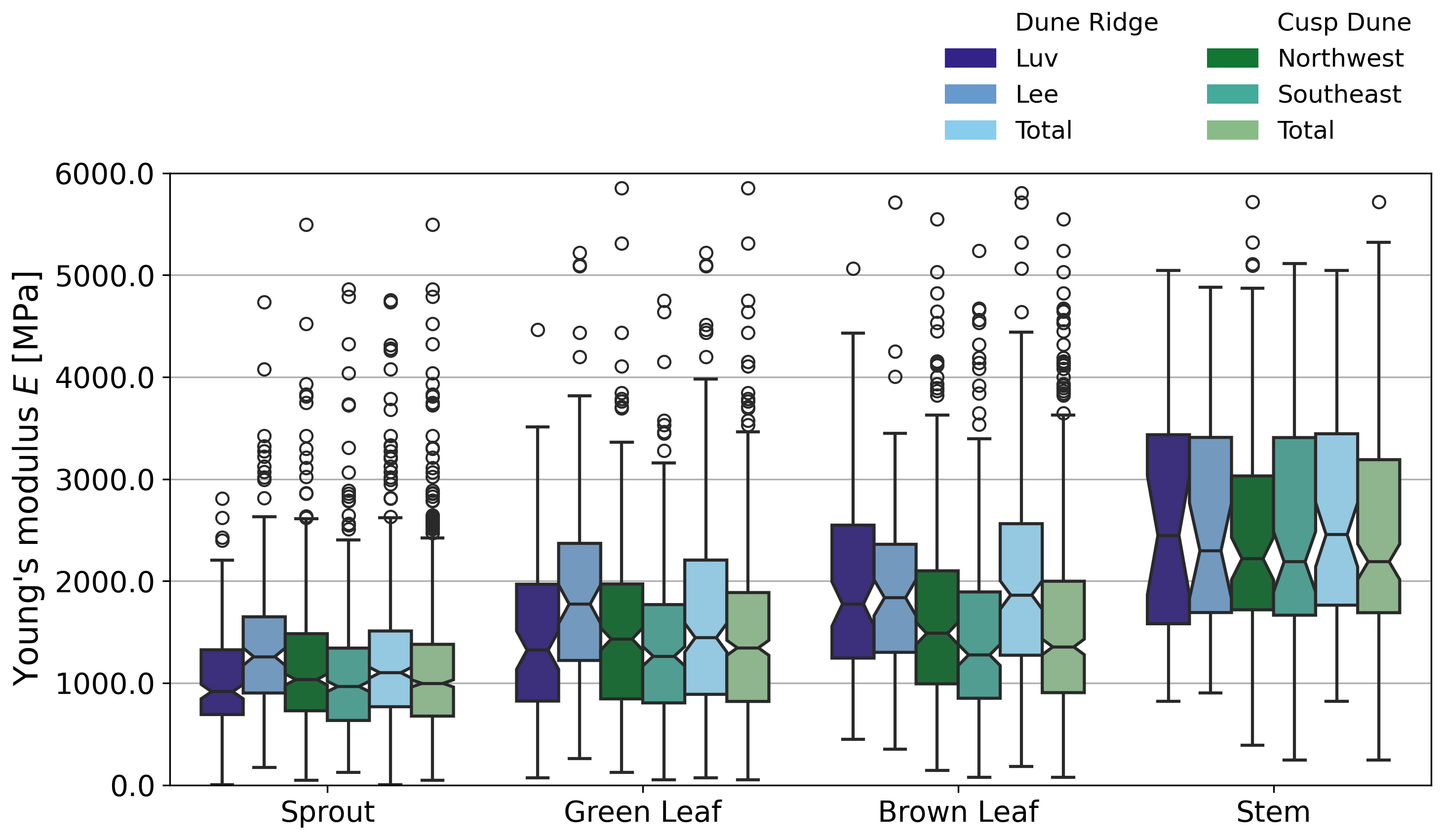

Figure 10 Comparison of luv side and lee side at Dune Ridge as well as the Northwest side and Southeast side at Cusp Dune with boxplots showing Young's modulus E for each plant component, based on year-round data. Note that 2 outlier values for sprouts, 8 for green leaves, 17 for brown leaves, and 10 for stems were excluded for visual clarity.

3.4 Influence of dune systems on plant biomechanics

In comparing the biomechanical traits between the two dune systems, Dune Ridge and Cusp Dune, several significant differences were observed (Figs. 8–10). Stems exhibited no significant differences in any of the measured parameters (K_B, E, d_o, and L) between Dune Ridge and Cusp Dune, indicating similar mechanical behavior across these systems for this plant part. For sprouts, Young's modulus was significantly higher at Dune Ridge (1243.01±816.02 MPa) compared to Cusp Dune (1115.39±666.96 MPa, p=0.002). The outer diameter was significantly larger at Cusp Dune (3.20±0.73 mm) compared to Dune Ridge (3.11±0.63 mm, p=0.043). Additionally, the length of sprouts was slightly greater at Dune Ridge (16.99±11.23 cm) compared to Cusp Dune (16.85±8.94 cm, p=0.039). Green leaves showed a significantly higher Young modulus at Dune Ridge (1647.10±1021.48 MPa) compared to Cusp Dune (1475.76±972.71 MPa, p=0.031). However, there were no significant differences in stiffness, outer diameter, and length. Brown leaves exhibited the most pronounced differences between the two dune systems. Young's modulus was significantly higher at Dune Ridge (2159.01±1425.67 MPa) compared to Cusp Dune (1634.93±1260.05 MPa, p<0.001), and the stiffness was also greater at Dune Ridge (0.63±0.79 N mm⁻¹) compared to Cusp Dune (0.54±0.68 N mm⁻¹, p=0.036). The outer diameter of brown leaves was significantly larger at Cusp Dune (1.72±0.30 mm) compared to Dune Ridge (1.65±0.33 mm, p<0.001). The length of brown leaves was also significantly greater at Cusp Dune (47.35±10.34 cm) compared to Dune Ridge (45.61±11.34 cm, p=0.010). Overall, Young's modulus was consistently higher at Dune Ridge across all plant parts except for stems. The outer diameter tended to be larger at Cusp Dune, particularly for sprouts and brown leaves. Length did not show a clear trend, with significant differences observed only for sprouts and brown leaves. Stiffness differences were primarily notable in brown leaves, with higher values at Dune Ridge.

4 Discussion

This study aims to provide detailed biomechanical parameters of marram grass to facilitate advanced modeling of dune vegetation. Current models often simplify or ignore traits in flexible vegetation, using surrogates like wooden dowels (e.g., Kobayashi et al., 2013; Bryant et al., 2019), which do not accurately reflect the dynamic interactions between vegetation and dune environments. By capturing seasonal variations in plant traits relevant to dune dynamics, such as stiffness and density, our data support a more realistic simulation of vegetation effects in dune stabilization. Moreover, the differentiation of mechanical properties across plant parts emphasizes the importance of trait-specific parameterization. The following table (Table 1) summarizes the biomechanical traits of marram grass by plant part and season. These values offer a reference for future modeling efforts and for the design of vegetation surrogates that reflect structural variability in dune systems.

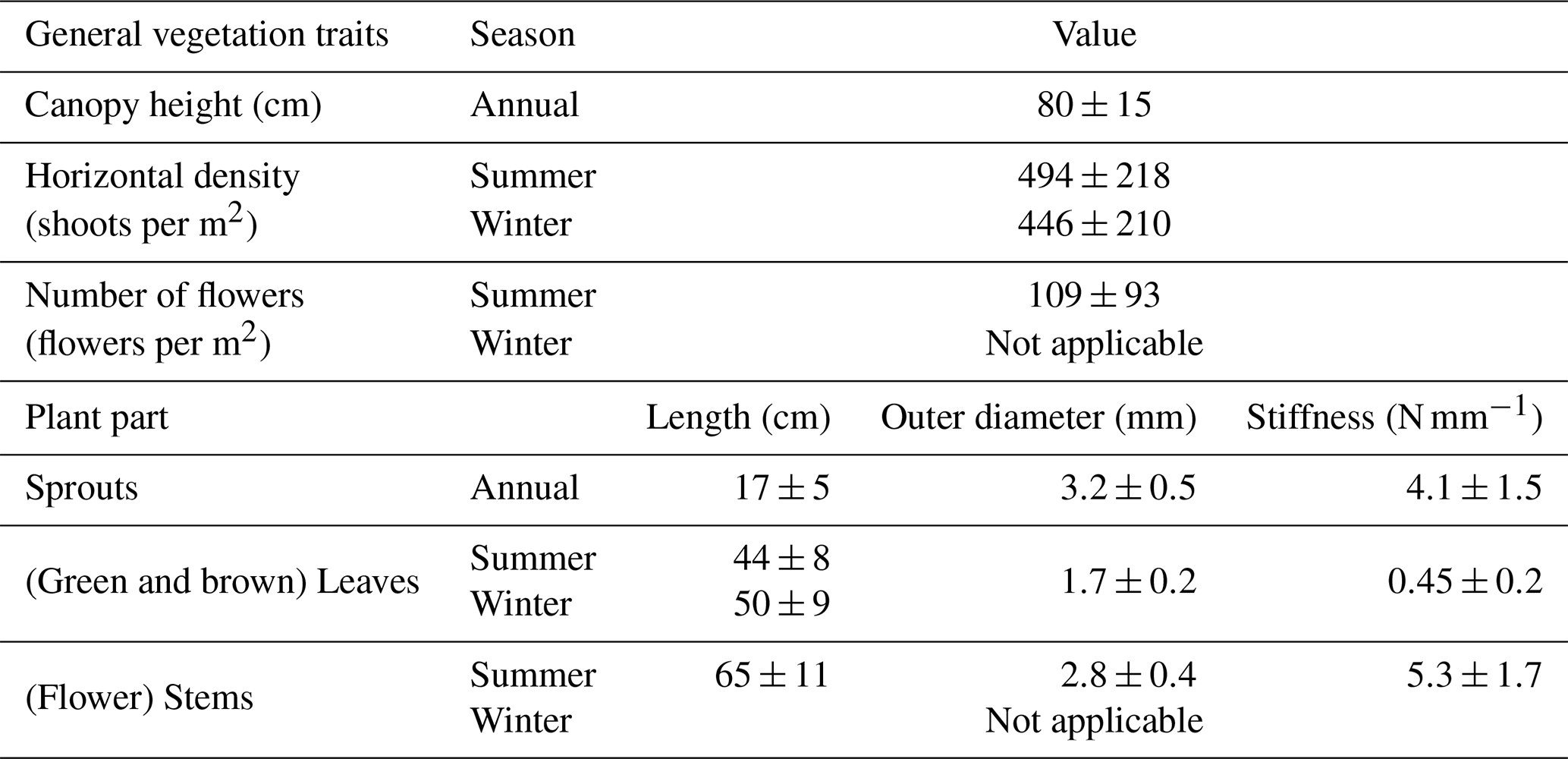

Table 1 Summary of marram grass parameters for surrogate modeling to accurately represent seasonal variations in dune dynamics and vegetation.

4.1 Seasonal variations in biomechanical traits

Understanding seasonal variations in plant properties is crucial for surrogate modeling because both dune dynamics and plant traits are subject to significant seasonal changes. Similar to findings on salt marsh vegetation, our results show that during summer, vegetation density significantly increases, while in winter, the stiffness of the vegetation is greater and the outer diameter smaller (Vuik et al., 2017; Foster-Martinez et al., 2018; Keimer et al., 2024; Li et al., 2024). However, in contrast to observations from salt marsh species, where plant length typically peaks in summer (Foster-Martinez et al., 2018; Schulze et al., 2019), our data show that leaf length in marram grass is significantly greater in winter. From a functional perspective, these longer winter leaves may play a critical role in dune resistance to storm events, as they directly contribute to key factors highlighted by Feagin et al. (2015), such as leaf area, plant architecture, and aboveground biomass, which influence vegetation–wave interactions in salt marshes. This seasonal adaptability of marram grass, with increased stiffness in winter enhancing erosion resistance and denser vegetation in summer promoting accretion, reinforces the contribution of marram grass to dune resilience across dynamic environmental conditions.

Canopy height showed no seasonal differences (annual average of 80±15 cm), aligning with the growth range reported by Hesp (1981) and Bressolier and Thomas (1977). Horizontal density was higher in summer, consistent with findings by Li et al. (2024) and Vuik et al. (2017), who noted increased vegetation density during the growth season. However, the density observed in this study was within the upper range of previous studies (Seabloom and Wiedemann, 1994; Zarnetske et al., 2012; Feagin et al., 2019). Our results showed that the number of flowers, observed only in summer, averaged 109±93 flowers m⁻², which is significantly higher than the approximately 30 flowers m⁻² reported by Seabloom and Wiedemann (1994). This seasonal occurrence of flowers must be taken into account in modeling efforts.

For sprouts, significant seasonal variations were observed in both stiffness and Young's modulus, with higher values in winter compared to summer. Furthermore, higher Young modulus values were found for the exposed northwestern tip of the Cusp Dune site, coinciding with the area showing the largest erosion observed at the site (see Fig. C1a in the Appendix). Interestingly for the Dune Ridge site, larger Young modulus values were measured along the sheltered lee side, showing accretion in the DEM analysis (see Fig. C2a in the Appendix), compared to the exposed luv side. The sprout length measurements can be compared to the stem heights up to 195 mm reported by Feagin et al. (2019), highlighting the importance of precise definitions of plant parts in such studies. However, longer sprouts were measured for the exposed northwestern tip of the Cusp Dune site, prone to erosion, compared to the Southeast sector, which exhibits accretion. This might well coincide with morphological changes identified in the DEMs, meaning the erosion uncovers the sprouts at the northern edge, while the identified sedimentation buries them at the southern end (compare Fig. C2a in the Appendix). Similarly, the sprout diameter aligns with the stem diameter of 3±1 mm found by Feagin et al. (2019). Seasonal variations in sprout parameters were minor and can be averaged annually for modeling purposes.

For green leaves, significant seasonal differences were observed in length, stiffness, and outer diameter. Green leaves were longer in winter, likely due to older leaves persisting through the season, contrasting trends observed in salt marsh species (Li et al., 2024; Koch et al., 2009). Conversely, the outer diameter of green leaves was larger in summer, which aligns with the findings of Vuik et al. (2017). Larger green leaf diameters were found along the sheltered lee side of the Dune Ridge site, whilst longer green leaves were identified at the sheltered South and West areas of the Cusp Dune site. These findings indicate that the plants develop larger phenological aboveground canopy in wind-sheltered areas compared to the exposed luv-oriented zones. However, the differences in stiffness and outer diameter between summer and winter were minor (summer: 0.29±0.11 N mm⁻¹ and 1.7±0.2 mm; winter: 0.33±0.13 N mm⁻¹ and 1.6±0.2 mm), making it practical to use an annual average for these parameters in modeling efforts, especially for physical models where replicating such minor variations may be challenging. For brown leaves, the only seasonal difference observed was in length, with brown leaves also being longer in winter, while stiffness and outer diameter remained constant, allowing for their annual averaging.

For stems, specifically flower stems, the summer-only presence highlights their importance for models representing the summer state. Their significant contribution to overall plant density, height, and stiffness makes them critical components in summer models where their structural contribution to accretion processes is essential. Overall, stiffness exhibited seasonal variations for both sprouts and green leaves, with higher values in winter. This trend aligns with Vuik et al. (2017), who speculated that winter vegetation tends to be stiffer due to lower temperatures and the fracturing of less resilient parts. However, these differences are not substantial enough to significantly impact physical modeling, indicating that seasonal variations in these parameters are negligible for modeling purposes and thus can be averaged annually. However, the increased stiffness and Young modulus in winter suggest that dune vegetation is more resistant to mechanical stress during this period, potentially enhancing dune stability. Conversely, the greater flexibility and density in summer indicate a higher capacity for growth and dune accretion processes. In summary, the significant seasonal variations in the biomechanical properties of marram grass highlight the need for seasonally adjusted modeling parameters in dune dynamics studies. Notably, three key aspects must be considered:

1. A major seasonal difference is the presence of flowers in summer, which must be accounted for in modeling.

2. The difference in horizontal density between seasons must be incorporated into surrogate models with an increased density in summer.

3. Besides flowers and density, only the length differences of the leaves are relevant and should be considered in modeling efforts.

4.2 Differentiation among plant parts

The variability in outer diameter and length among plant parts necessitates distinct consideration in modeling efforts. Sprouts and stems, with their larger diameters, offer robust resistance against physical forces. The differences in length, particularly the significant disparity between stems and other plant parts, further emphasize the need to account for each part's geometric characteristics to accurately represent their contributions to dune morphology. However, the lack of significant differences in outer diameter and length between green and brown leaves in summer, along with the relatively small differences in stiffness and length in winter, indicates that, for these parts, a simplified representation might be sufficient. Given the close similarity between green and brown leaves and considering the practicalities of physical modeling, where precise distinctions may not be easily implemented, the following simplified properties, averaged from green and brown leaves, can be applied for leaves in general:

• Summer: length $=\mathrm{44}\pm \mathrm{8}$ cm; outer diameter $=\mathrm{1.7}\pm \mathrm{0.2}$ mm; stiffness $=\mathrm{0.45}\pm \mathrm{0.2}$ N mm⁻¹.

• Winter: length $=\mathrm{50}\pm \mathrm{9}$ cm; outer diameter $=\mathrm{1.7}\pm \mathrm{0.2}$ mm; stiffness $=\mathrm{0.45}\pm \mathrm{0.2}$ N mm⁻¹.

The significant differences in stiffness and Young modulus between plant parts also underscore the need to model each component separately. Stems, with their highest values for both parameters, provide the greatest structural support. In contrast, green and brown leaves, which showed lower stiffness and Young modulus, contribute more to flexibility and dynamic responses to environmental forces. Ignoring these differences could lead to inaccuracies in predicting vegetation behavior and its impact on dune dynamics, resulting in models that do not adequately reflect the true mechanical properties and structural roles of the vegetation, though in some cases, a simplified approach may still be appropriate without compromising model accuracy.

4.3 Impact of wind on plant biomechanics

The impact of wind exposure on the biomechanical traits of dune vegetation reveals significant variations between windward and leeward sides of the dunes, most notably in stiffness and Young's modulus. Stems exhibited no significant differences between wind-exposed and sheltered sides, indicating a uniform structural response, while the greatest variations occurred in sprouts.

Significant differences in stiffness and Young's modulus between windward and leeward sides suggest these parameters are most sensitive to wind exposure and likewise to coupled aeolian sediment transport (see Figs. C1a and C2a in the Appendix). At Dune Ridge, the leeward side exhibited greater stiffness and Young modulus, which may indicate an avoidance strategy, where vegetation increases flexibility on the windward side to reduce wind impact. Conversely, at Cusp Dune, the more wind-exposed Northwest zone showed higher stiffness and Young modulus, suggesting a tolerance strategy with vegetation maximizing its resistance to breakage to withstand wind forces. Wind data from 2022 showed predominantly west-dominated winds, with the highest frequency from the northwest during summer, while in winter, southwest winds were more prevalent, though the strongest winds (≥ Bft 6) predominantly originated from the northwest (see also Sect. C2 in the Appendix). As a result, the southwest-facing Dune Ridge coastline complicates wind exposure impact assessment, and comparisons between Northwest and Southeast zones showed few significant differences, suggesting no strong wind exposure effect on plant biomechanics. Consequently, wind influence will not be included in the biomechanical parameterization of marram grass.

4.4 Influence of dune type on plant biomechanics

Higher stem density and increased flower production in Cusp Dune suggest favorable conditions for plant growth, likely influenced by frequent sand burial, which enhances plant health and germination potential (Maun, 1998; Bonte et al., 2021; van der Putten and Troelstra, 1990; Huiskes, 1979). This dynamic environment leads to more frequent production of inflorescences compared to the more stable conditions of fixed dunes. Higher canopy height in the North zone of Cusp Dune suggests landward dune migration, emphasizing its categorization as a more mobile system. In contrast, Dune Ridge, as part of the fixed dunes, remains more stable (Isermann and Cordes, 1997; Pollmann et al., 2018). The distinction into dynamic and stable systems is also supported by the DEM analysis showing a clear migration for Cusp Dune and a more stable situation for Dune Ridge (see also Sect. C1 in the Appendix). The biomechanical properties of marram grass show some variations between dune types. Young's modulus values indicate higher stiffness on the fixed dune (Dune Ridge), but this trend is not consistently confirmed by stiffness measurements, suggesting that biomechanical differences may not be substantial enough to affect transferability. The absence of clear biomechanical trends across dune types supports the robustness of marram grass in European coastal dune systems, indicating its broad applicability within these environments. However, freshly planted marram grass or newly constructed dunes with planted vegetation may exhibit different biomechanical responses, which should be considered in modeling and practical applications.

4.5 General relevance for foredune vegetation

Marram grass is widely distributed across European sandy coastlines, making our findings highly representative of a broad range of coastal environments. Additionally, closely related species such as Ammophila breviligulata in North America share similar ecological functions (Mostow et al., 2021; Stalter and Lonard, 2024). Foredunes, which form the first line of defense against coastal erosion, host a variety of grass species worldwide, many of which exhibit comparable biomechanical adaptations to stabilize sediments and withstand environmental forces (Mostow et al., 2021). Our study provides a valuable framework for understanding the biomechanical differentiation among plant components and their seasonal variations. The observed shifts in stiffness, canopy density, and seasonal growth dynamics are likely key factors for dune stability in other dune grass species as well, underlining the importance of plant-trait-based approaches in coastal protection research.

4.6 Methodological considerations

The choice of marram grass for biomechanical parameterization was based on its widespread occurrence, historical use in dune stabilization, and resilience to extreme environmental conditions (Huiskes, 1979; Feagin et al., 2015; de Battisti and Griffin, 2020; Bonte et al., 2021; Strypsteen et al., 2024). Additionally, the species' resilience to high temperatures and drought conditions, as demonstrated by temperature data (see Sect. C4 in the Appendix), makes it an ideal candidate for future coastal defense strategies in the context of climate change (Huiskes, 1979; Gao et al., 2020; Biel and Hacker, 2021). Field investigations revealed seasonal variations in plant morphology, influenced by accretion and erosion processes, but lacked high-resolution digital elevation models (DEMs), highlighting the need for enhanced monitoring methods. The interaction between measured canopy height and sand burial dynamics plays a crucial role in understanding vegetation growth, as sediment accumulation can counteract vertical plant development. Laboratory investigations confirmed that length and outer diameter of plant parts showed minimal seasonal variation, supporting simplified modeling approaches, but also underscored measurement challenges, for example, due to plant structures with non-circular cross-sections. While stiffness (K_B) emerged as a more reliable parameter than Young's modulus (E), histological analyses emphasized the complexity of plant architecture and the limitations of assuming idealized cross-sectional geometries. Future research should focus on improving the representation of these structural intricacies to enhance biomechanical modeling accuracy.

4.7 Recommendations for future research

To build on the findings of this study and to further enhance our understanding of dune vegetation's biomechanical properties, particularly in the context of coastal protection, several key areas for future research are identified.

• Aboveground vegetation parts, which were the focus of this study's biomechanical parameterization, are crucial for processes such as dune growth and morphological development during the summer. Their sand-trapping properties are essential for dune formation and shaping (Feagin et al., 2015; Ruggiero et al., 2018), and the aboveground biomass creates drag, helping to prevent overwash and, as a result, prevent erosion on the landward side of the dune (Silva et al., 2016). However, belowground plant parts also play a critical role in erosion processes and provide lateral resistance of coastal dunes, particularly during extreme events (Feagin et al., 2019; Bryant et al., 2019; de Battisti and Griffin, 2020; Schweiger and Schuettrumpf, 2021; Figlus, 2022). Further data collection on belowground plant parts is needed to enhance our understanding of these processes and the potential impacts of abiotic stress, such as on root development (Gardiner et al., 2016; Kouhen et al., 2023). The inclusion of belowground plant parts in future research was also stressed by Figlus et al. (2014), Silva et al. (2016), and Bryant et al. (2019). Husemann et al. (2024) and Freschet and Roumet (2017) emphasize the importance of considering different parts of the belowground biomass, such as roots, rhizomes, and buried shoots, each with distinct physical characteristics that contribute to the lateral resistance of coastal dunes, as was done here with aboveground plant parts.

• While this study provides detailed biomechanical insights into marram grass across seasons and dune environments, future research could integrate these findings into aeolian models to assess their practical impact on sediment transport and dune stability. Investigating how variations in plant stiffness, density, and height influence aeolian processes would provide valuable guidance for refining vegetation parameterization in dune modeling frameworks.

• Experiments using real vegetation as well as surrogate models are necessary for comparison and validation, ideally on a large scale. This is particularly important given the challenges in accurately replicating the bending behavior of vegetation. The use of 3D printing or other suitable materials, guided by the biomechanical properties of aboveground plant parts identified in this study, could enhance the accuracy of surrogate models. In this study, it is recommended to model each sprout with four leaves for more accurate representation, although this assumption has not been directly validated within the scope of this research. Therefore, further verification is necessary to confirm this modeling approach and to ensure that it accurately reflects the natural vegetation structure. Additionally, the properties identified in this study must be seasonally distinguished in modeling efforts: summer values should be used for experiments focused on dune accretion processes, while winter values are more appropriate for modeling dune erosion processes. This seasonal differentiation is crucial for accurately simulating the dynamic interactions between vegetation and dune morphology throughout the year.

• Controlled studies on wind exposure effects and comparisons across different sites are recommended to better understand the influence of environmental factors on biomechanical properties. Expanding the dataset to include various locations and environmental conditions will enhance the reliability and applicability of surrogate models. Advanced techniques, such as machine learning, could be incorporated to predict vegetation behavior under diverse conditions. Additionally, a comprehensive comparison with newly constructed dunes planted with marram grass is important. Since marram grass planting is a common practice in coastal protection management (e.g., Gracia et al., 2018), understanding its biomechanical properties in newly planted scenarios can provide valuable insights for effective dune stabilization strategies.

• While this study employed three-point bending tests due to their practicality and comparability with previous biomechanical studies of vegetation, future research might benefit from exploring two-point bending tests. Two-point bending tests could better simulate natural conditions, such as wind- or wave-induced bending of aboveground plant parts. However, these tests are more demanding in terms of sample mounting and alignment, requiring more time and resources than were available in this study. The work of Liu et al. (2021), which employed such tests on salt marsh vegetation, underscores the need for appropriate sample fixation when considering this method.

5 Conclusions

This study provides a comprehensive dataset of the biomechanical properties of marram grass over 12 months, highlighting significant seasonal variations and differences among precisely defined plant components (Table 1). By analyzing 1543 sprouts, 841 green leaves, 823 brown leaves, and 389 stems, we address a critical gap in the empirical basis for modeling dune vegetation. The observed differences in biomechanical traits between distinct plant components, as well as their seasonal variability, offer valuable insights for the development of accurate aboveground vegetation surrogates and enhance the reliability of both physical and numerical models used to simulate dune stabilization and coastal defense processes. To translate these biomechanical insights into practical modeling and management strategies, we highlight the following key aspects:

• Seasonal variations and model integration. The biomechanical properties of marram grass vary seasonally, influencing its role in dune stability. To improve model accuracy, we recommend integrating seasonally adjusted stiffness and density values, as these factors influence sediment capture and dune resilience. Computational models should incorporate temporal shifts in biomechanical traits to reflect changing dune–vegetation interactions.

• Targeted data collection. Given the biomechanical differentiation between plant components, field measurements should focus on collecting data on plant structures with the highest seasonal variability, such as flower stems, sprout stiffness, and canopy density. Additionally, repeated seasonal surveys should be prioritized in future monitoring programs. These data will enhance model precision and allow for improved predictions of dune stabilization dynamics.

• Refinement of wind interaction modeling. Although our study found no consistent effect of wind on plant biomechanics, future research should further investigate localized wind–vegetation interactions, particularly in environments with high wind variability. While wind exposure is not a key biomechanical driver in our findings, site-specific analyses may be necessary for broader applications.

• Application to dune management strategies. The findings reinforce the necessity of adaptive dune management, where seasonal vegetation changes inform conservation and stabilization efforts. Coastal managers should incorporate seasonal shifts in vegetation stiffness and density into dune conservation policies, ensuring that restoration projects align with natural growth cycles to maximize stability.

Appendix A: Literature overview

Rupprecht et al. (2015)Rupprecht et al. (2017)Vuik et al. (2017)Schulze et al. (2019)Zhu et al. (2020)Liu et al. (2021)Paul et al. (2022)Keimer et al. (2023)Keimer et al. (2024)

Table A1 Key findings from biomechanical studies combining field observations with three-point bending tests on salt marsh vegetation. Additional methodologies are listed where applicable.

(Bressolier and Thomas, 1977)(Hesp, 1981)(Mostow et al., 2021)(Hacker et al., 2012)(Feagin et al., 2019)(Mostow et al., 2021)(Biel et al., 2019)(Zarnetske et al., 2012)(Feagin et al., 2019)(Seabloom and Wiedemann, 1994)(Hacker et al., 2012)(Hacker et al., 2012)(Feagin et al., 2019)(Mostow et al., 2021)(Feagin et al., 2019)(Feagin et al., 2019)(Feagin et al., 2019)(Mostow et al., 2021)(Hacker et al., 2012)(de Battisti and Griffin, 2020)(Feagin et al., 2019)(Andrade et al., 2021)(Chergui et al., 2017)

Table A2 Overview of literature data on the characteristics of marram grass (Calamagrostis arenaria). The reported parameters reflect the terminology used in the respective studies.

Appendix B: Plant sampling and methods

B1 Methods overview

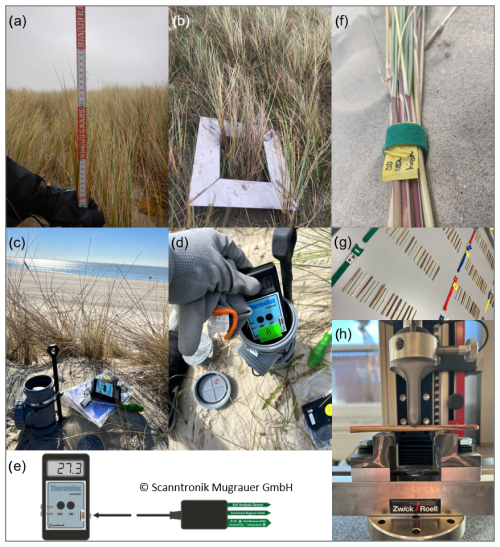

Figure B1 Overview of the methodology used in this study. (a) Measurement of canopy height using a folding ruler. (b) Determination of horizontal density with a 20 cm frame. (c) Replacement of the data logger connected to the soil analysis sensor, with a close-up view in panel (d) showing the data logger within its enclosure during replacement. (e) Manufacturer's overview (Scanntronik Mugrauer GmbH, 2024a) of the data logger (left) connected to the soil analysis sensor (right), which is installed approximately 20–30 cm deep in the soil. (f) Bundle of plant samples collected for further laboratory analysis. (g) Sample sections prepared for three-point bending tests. (h) Image of a sample in place for a three-point bending test before the start of the experiment.

B2 Plant sampling

Figure B2 Overview of sample collection and preparation of marram grass. (a) Typical view of marram grass in winter (March 2022), with an illustration of the angled cutting technique used to ensure that the orientation of the samples in the field is maintained in the laboratory. Samples were cut and collected at the height of the soil surface. (b) Marram grass in summer (August 2022) showing high density and the presence of flower stems. (c) Close-up of the cut end of a sample, indicating the longer side facing west. (d) A full shoot sample with cut sections for the removal of green/brown leaves (top) and sprouts (bottom), which are present year-round. (e) Separate image of a flower stem after removal, relevant for the summer state of marram grass.

B3 Plant measurements

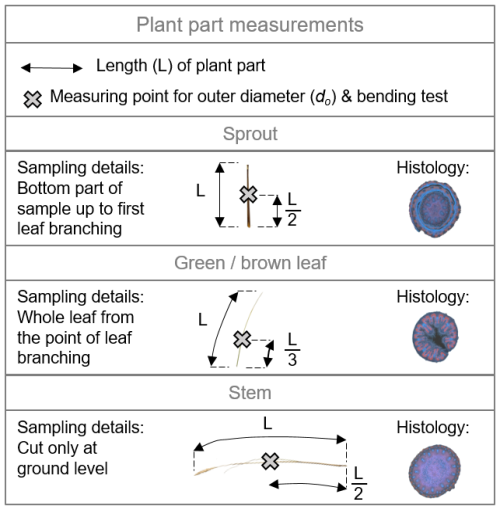

Figure B3 Illustration of length (L) measurements, indicated by arrows, and measuring points marked with an “X” for defining the outer diameter (d_o) and the location of three-point bending tests. These measurements are demonstrated for the three plant component types: sprout, green/brown leaf, and (flower) stem. Additionally, histological cross-sections are provided for each plant part to highlight the complexity of their internal structures.

Appendix C: Environmental parameters

Morphologic changes for the two field sites have been assessed based on DEM model data for the areas sourced from the NLWKN (2024) for the years 2019 and 2022. Deriving a difference map for the two DEMs yields vertical elevation changes between those two surveys for the two field sites, Dune Ridge and Cusp Dune. Furthermore, environmental parameters included weather data that were used to further describe the environmental conditions at study sites. The weather data included wind measurements at 10 m height, air temperature, and precipitation for the years 2017–2022, with a particular focus on wind data due to its presumed relevance to the biomechanical properties of the vegetation and its influence on accretion processes. Wind data were obtained from a weather station operated by the Deutscher Wetterdienst (DWD), located at 53.7674° N, 7.6721° E on Spiekeroog. Air temperature and precipitation data were sourced from another weather station operated by the Institute for Chemistry and Biology of the Marine Environment (ICBM) of the University of Oldenburg, located nearby at 53.7762° N, 7.6880° E. Notably, all measurements were recorded at 10 min intervals. Temperature and precipitation data were subsequently averaged to monthly mean values. In addition to the weather data, soil temperature measurements were taken at a depth of 20–30 cm using soil analysis sensors (digital) by Scanntronik Mugrauer GmbH (2024b). The measurement range for the temperature was −30 to +80 °C, with an average resolution of 0.1 °C and an accuracy of ±1 °C. The positions of these sensors are marked in Figs. 2a and 3a. Soil temperature was recorded at 10 min intervals with a Thermofox Universal data logger by Scanntronik Mugrauer GmbH (2024a), using Softfox (version 3.05) for setup. These recordings were first averaged over 60 min periods to calculate hourly temperatures. For analysis purposes, the hourly temperatures were subsequently categorized into daytime and nighttime temperatures. Daytime temperatures were defined as those recorded between 06:00 and 17:59, while nighttime temperatures were defined as those recorded between 18:00 and 05:59. This separation of data allowed for a detailed examination of diurnal temperature variations and their potential impact on dune vegetation. Due to a sensor failure at Cusp Dune, there was a significant data loss from 2 May to 13 July, likely affecting the recorded temperatures in May, June, and July.

C1 Morphology

For Cusp Dune, situated at the northern beach of the island, a clear southward migration can be identified based on the compiled sedimentation erosion maps shown in Fig. C1a. The northern part of the dune along the luv or seaward side being the most exposed part is eroded up to −2.9 m within 3 years, becoming level with the beach north of it. The former dune toe zone migrated 28 m inland between 2019 and 2022. The central and southern part of Cusp Dune shows significant vertical accretion, with an average of +1.5 m over 3 years. Apart from the dune itself, the beach north of it shows erosion of an average of −0.4 m during this period. Meanwhile, the blowouts left and right of Cusp Dune show accretion of 0.5 m along the western blowout and 0.6 m on average along the eastern blowout. This overall pattern clearly mimics the impact of the predominant northwestern angle of wave and wind attack, eroding the northern beach and exposed dune slopes, while accumulating sediments within the more sheltered blowout sections and on the leeward side of the dune ridges.

In addition to the sedimentation erosion maps, aeolian transport volume for the field site has been calculated and is compiled in Fig. C1b with monthly intervals. The calculation is based on the revised transport formulae found in van Rijn and Strypsteen (2020). Wind speed and direction have been sourced from weather station no. 6091 operated by the German Weather Service (DWD), located at 53.7674° N, 7.6721° E on Spiekeroog. Transport volumes are calculated with the formulae based on wind angle of attack in relation to the dune location, exposure, and area. For Cusp Dune a total of 1606 m³ was calculated, which equates to a 0.3 m elevation increase per year on average, corresponding well to the DEM values. In comparison, the southern Dune Ridge is relatively stable over multiple years, which is expressed in a gradual vertical increase of 0.3–0.7 m along the ridge line and larger depositions on the lee side with up to 1.4 m (see Fig. C2a). Maximum erosion occurs near the luv side dune toe area ranging between −0.4 and −1.2 m. The beach in front of the dune shows a gradual vertical increase, with an average of 0.2 m over 3 years. The aeolian transport volume calculated the same way for Dune Ridge yields a total sedimentation volume of 2225 m³ per year, which corresponds to a vertical increase of 0.6 m. This value is higher than for the Cusp Dune site but still within the DEM range for the period. In the map shown in Fig. C2a, a blowout is clearly visible in the middle of the Dune Ridge sampling area, which exhibits strong erosion, while the surrounding crest and landward side of the dune experience sedimentation, corroborating the average net sedimentation value. Both field sites were exposed to five storm surge events during 2022, of which all five reached the dune toe areas and induced erosion (BSH, 2024).

Figure C1 Morphological changes in 2019–2022 for Cusp Dune (a) based on DEM data with a 1 m × 1 m raster resolution provided by the Lower Saxony Water Management, Coastal and Nature Protection Agency (NLWKN). Aeolian transport volume calculation for 2022 based on wind speed and direction data sourced from the German Weather Service (DWD) station on Spiekeroog situated between the two field sites.

Figure C2 Morphological changes in 2019–2022 for Dune Ridge (a) based on DEM data with a 1 m × 1 m raster resolution provided by the Lower Saxony Water Management, Coastal and Nature Protection Agency (NLWKN). Aeolian transport volume calculation for 2022 based on wind speed and direction data sourced from the German Weather Service (DWD) station on Spiekeroog situated between the two field sites.

C2 Wind forces

The wind roses (Fig. C3) illustrate the distribution of wind speed and direction for the years 2018–2022 (Fig. C3a) and the year 2022 (Fig. C3b), along with seasonal data for 2022 (i.e., summer and winter; see Fig. C3c and d). During the years 2018–2022, strong winds (>8 m s⁻¹, Bft 5) were west-dominated, totaling 64.46 % (W: 24.43 %; NW: 22.71 %; SW: 17.32 %). In 2022, the distribution of strong winds shifted slightly, but remained west-dominated, totaling 66.61 % (W: 24.27 %; NW: 26.59 %; SW: 15.75 %). Focusing on summer months (April to September 2022), which represent key growth phases for vegetation, strong winds were predominantly from the northwest (W: 25.85 %; NW: 38.62 %). Moderate winds (<8 m s⁻¹) were more evenly distributed, ranging from 8.52 % (SW) to 17.11 % (E). In winter (October to March 2022), strong winds were more distributed and shifted slightly to the southwest (W: 22.97 %; SW: 22.00 %; NW: 16.70 %). Moderate winds were predominantly from the south (S: 29.39 %; SE: 19.39 %; SW: 14.61 %).

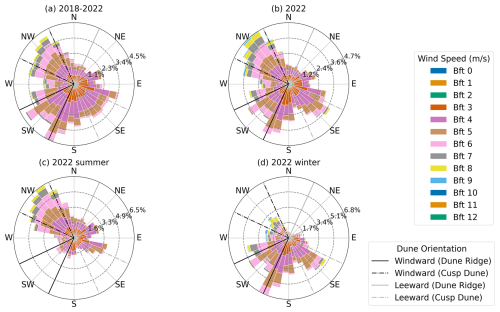

Figure C3 Wind roses showing wind direction and frequency for various time periods (Deutscher Wetterdienst, 2020): (a) wind rose for 2018–2022, (b) wind rose for 2022, (c) wind rose for summer months of 2022 (April–September), and (d) wind rose for winter months of 2022 (October–March). Windward (black) and leeward (light gray) directions are indicated for each dune site. Solid lines represent Dune Ridge, and dot-dashed lines represent Cusp Dune, highlighting the directions perpendicular to the wind-exposed and wind-sheltered dune sides.

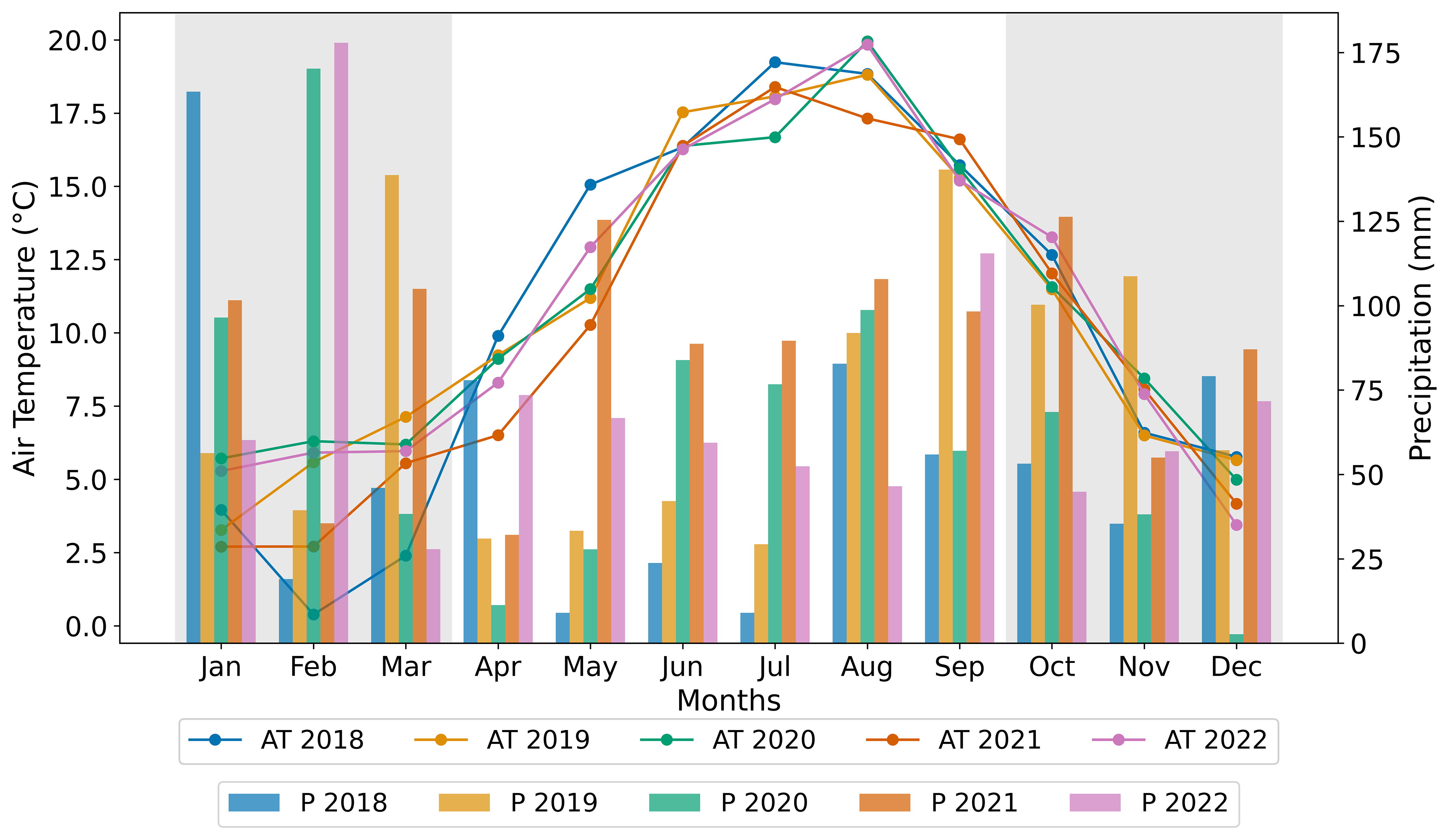

Figure C4 Markers and lines show monthly mean values of air temperature (in °C) and the bars monthly values of precipitation (in mm) for the years 2018–2022. White and gray background colors indicate the definition of summer and winter months, respectively.

C3 Climate

The analysis of air temperature and precipitation data revealed that the air temperature peaks were consistently reached in July or August across all years, with August being the peak month in 2022 (Fig. C4). The lowest temperatures were observed from November to March in all years, with the winter of 2022 being relatively mild compared to other years, except for December. Overall, the air temperatures in 2022 were within the average range. Regarding precipitation, the data showed that 2022 had generally average precipitation levels with some outliers. Notably, February 2022 had a marked peak, recording the highest monthly average precipitation among all observed years.

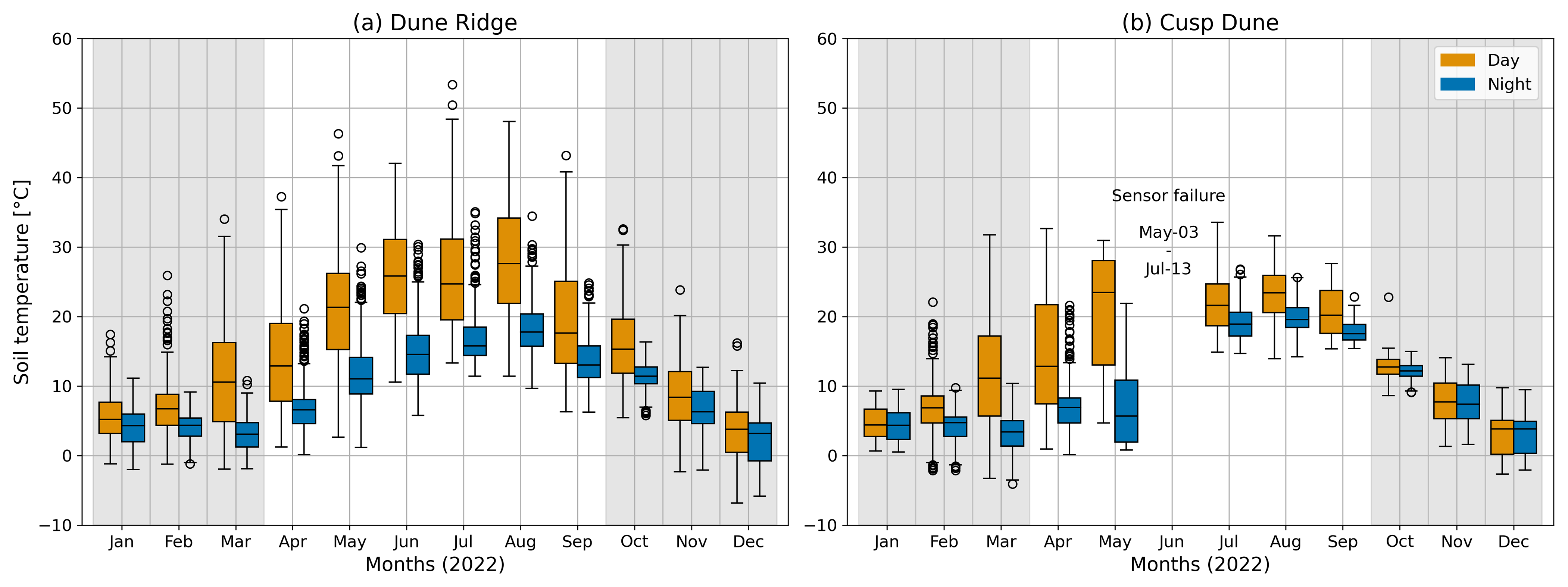

Figure C5 Monthly daytime (in orange) and nighttime soil temperatures (in blue) at (a) Dune Ridge and (b) Cusp Dune throughout 2022. White and gray background color indicate the definition of summer and winter months, respectively.

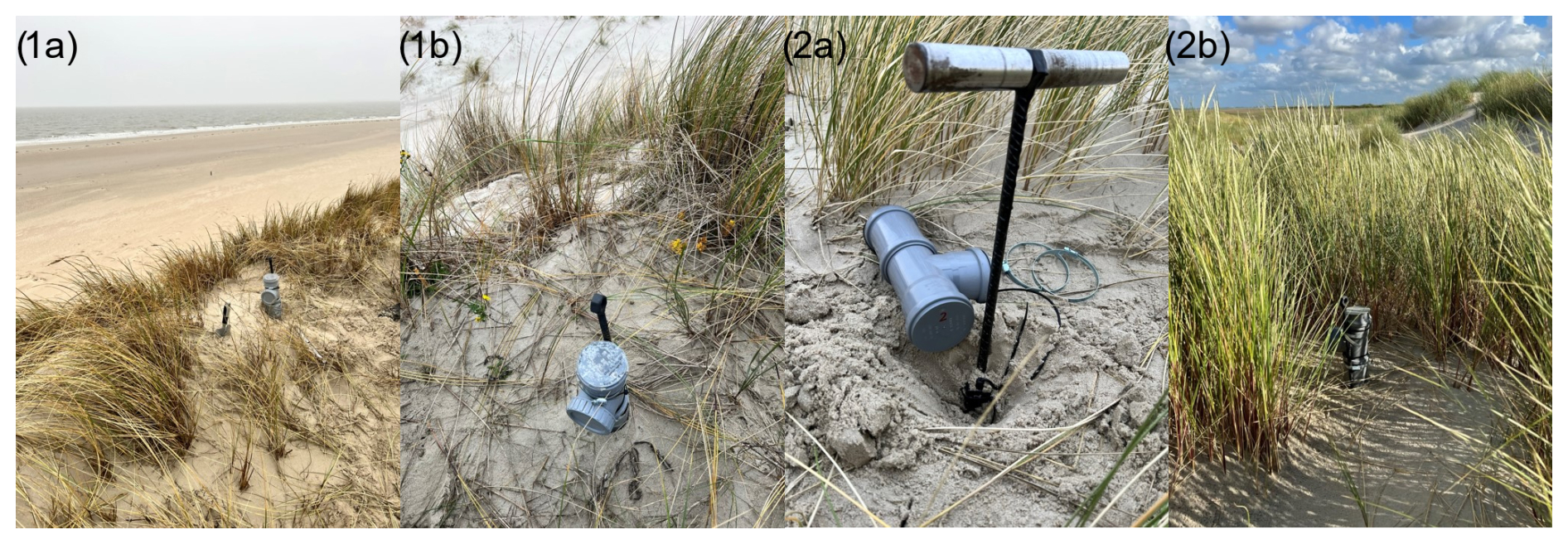

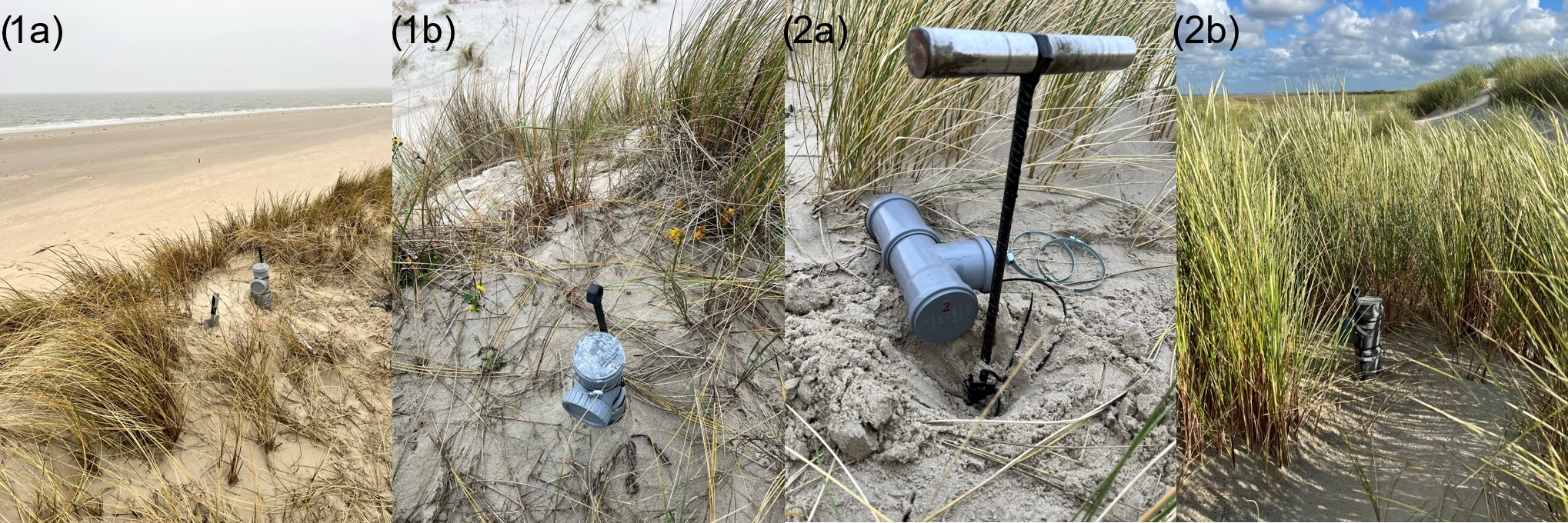

Figure C6 (1) Soil sensor at Dune Ridge (1a) in February 2022 and (1b) in November 2022. (2) Soil sensor at Cusp Dune (2a) in February 2022 and (2b) in June 2022. The images illustrate the differences in vegetation cover and shading at the sensor locations across different times of the year.

C4 Soil sensor

The soil temperatures at Dune Ridge and Cusp Dune sites showed considerable seasonal and diurnal variations throughout the year 2022, as illustrated by boxplots in Fig. C5. Comparing the two sites, Dune Ridge (Fig. C5a) generally exhibited higher temperature extremes, especially during the day, reflecting potentially greater solar exposure due to sparse vegetation. For instance, in August, the maximum daytime soil temperature at Dune Ridge was 48.03 °C, with an average of 28.02 °C, while at Cusp Dune (Fig. C3b), the maximum was 31.60 °C, with an average of 23.30 °C. The highest daytime soil temperature recorded was 53.38 °C at Dune Ridge in July. The surrounding vegetation at Cusp Dune, which grew tall and dense by June (Fig. C6-2a and 2b), likely shaded the sensor, contributing to lower recorded temperatures compared to Dune Ridge (Fig. C6-1a and b).

Appendix D: Results – tables

This section provides a comprehensive overview of the seasonal variations in the biomechanical properties of aboveground vegetation parts of marram grass. In Tables D1–D6 the results of the statistical analyses are presented, structured to address the key research questions and highlight significant differences in biomechanical traits.

D1 Seasonal variations in biomechanical properties of marram grass

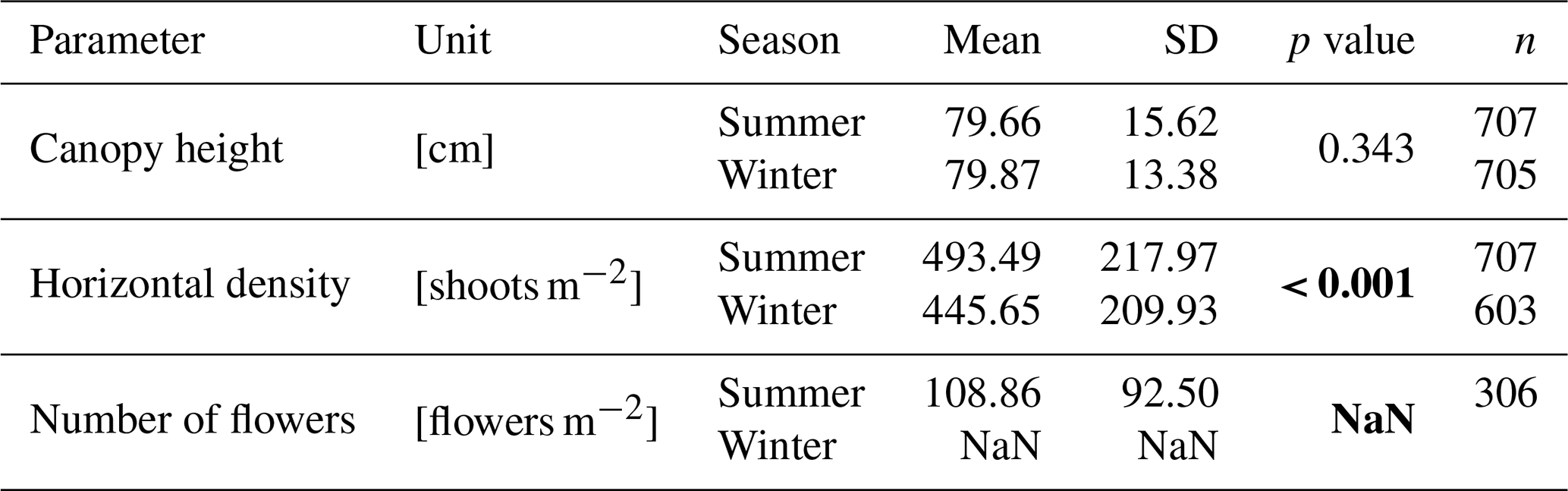

Table D1 Mean and standard deviation of canopy height, horizontal density, and number of flowers for both dune sites across seasons (summer/winter) as well as Mann–Whitney test results showing seasonal differences with significant values (p<0.05) in bold. Note that flowering occurred only in summer.

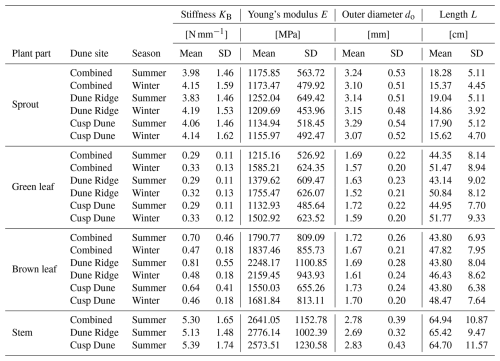

Table D2 Mean and standard deviation of parameters for different plant components and dune sites across seasons (summer/winter).

Table D3 Mann–Whitney test results comparing seasonal differences (summer/winter) for each plant component, with data aggregated across both dune sites (Dune Ridge and Cusp Dune). Significant values (p<0.05) in bold.

D2 Comparison of biomechanical traits among plant parts

Table D4 Results of the Mann–Whitney tests comparing biomechanical parameters between plant components for each season. Significant values (p<0.05) in bold.

D3 Impact of wind exposure on biomechanical traits

Table D5 Mann–Whitney test results comparing plant components between different exposure conditions at each dune site. For Dune Ridge, comparisons are made between luv and lee, while for Cusp Dune, comparisons are made between Northwest and Southeast. Significant values (p<0.05) in bold.

D4 Influence of dune systems on plant biomechanics

Table D6 Mann–Whitney test results comparing Dune Ridge (Zone 1) with Cusp Dune (Zone 2) for each plant component. Significant values (p<0.05) in bold.

Appendix E: Results – figures

The following figures (Figs. E1–E4) offer a visual representation of the findings through heatmaps, illustrating the spatial and seasonal variations of the measured properties across different dune zones.

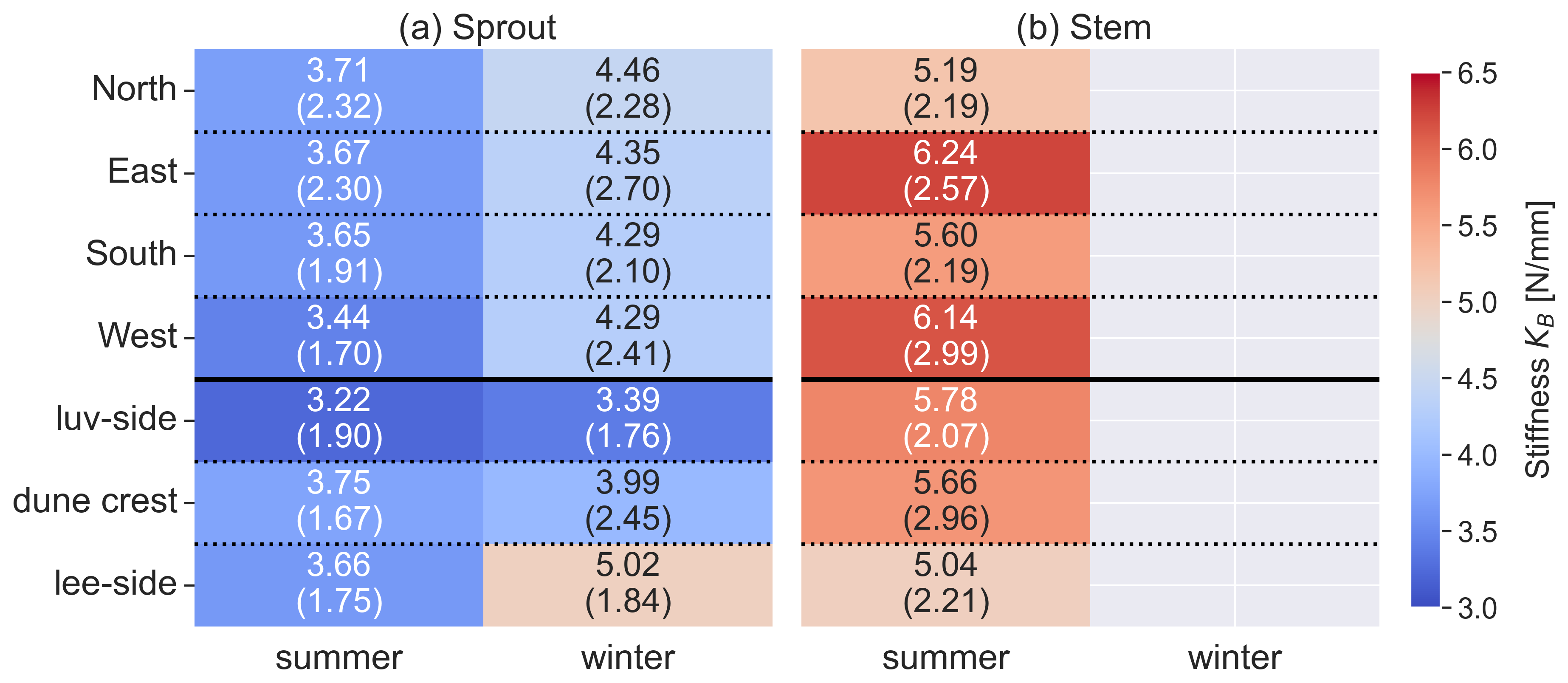

Figure E1 Heatmap showing stiffness K_B for (a) sprout and (b) stem in different zones and seasons. The values within the heatmap cells represent the mean stiffness (in N mm⁻¹), with the standard deviation in parentheses.

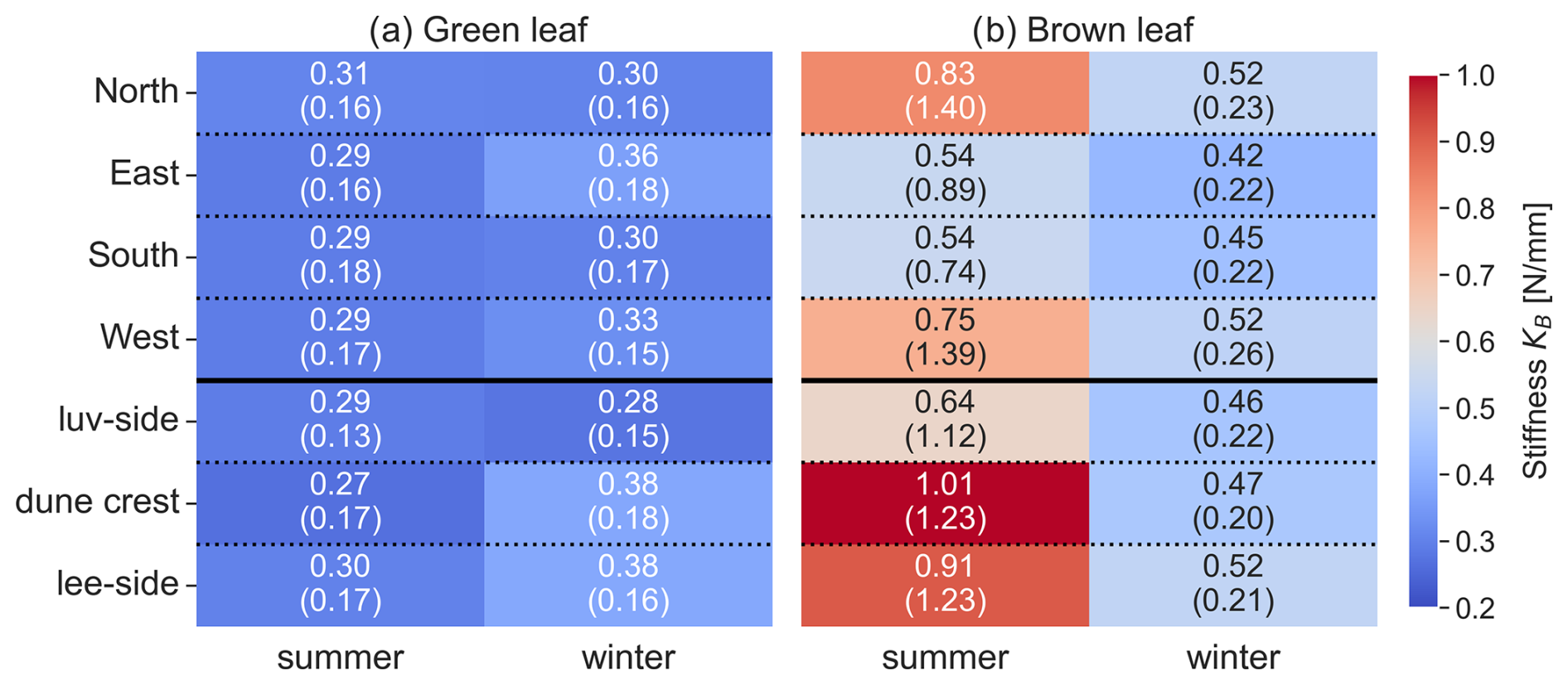

Figure E2 Heatmap showing stiffness K_B for (a) green leaf and (b) brown leaf in different zones and seasons. The values within the heatmap cells represent the mean stiffness (in N mm⁻¹), with the standard deviation in parentheses.

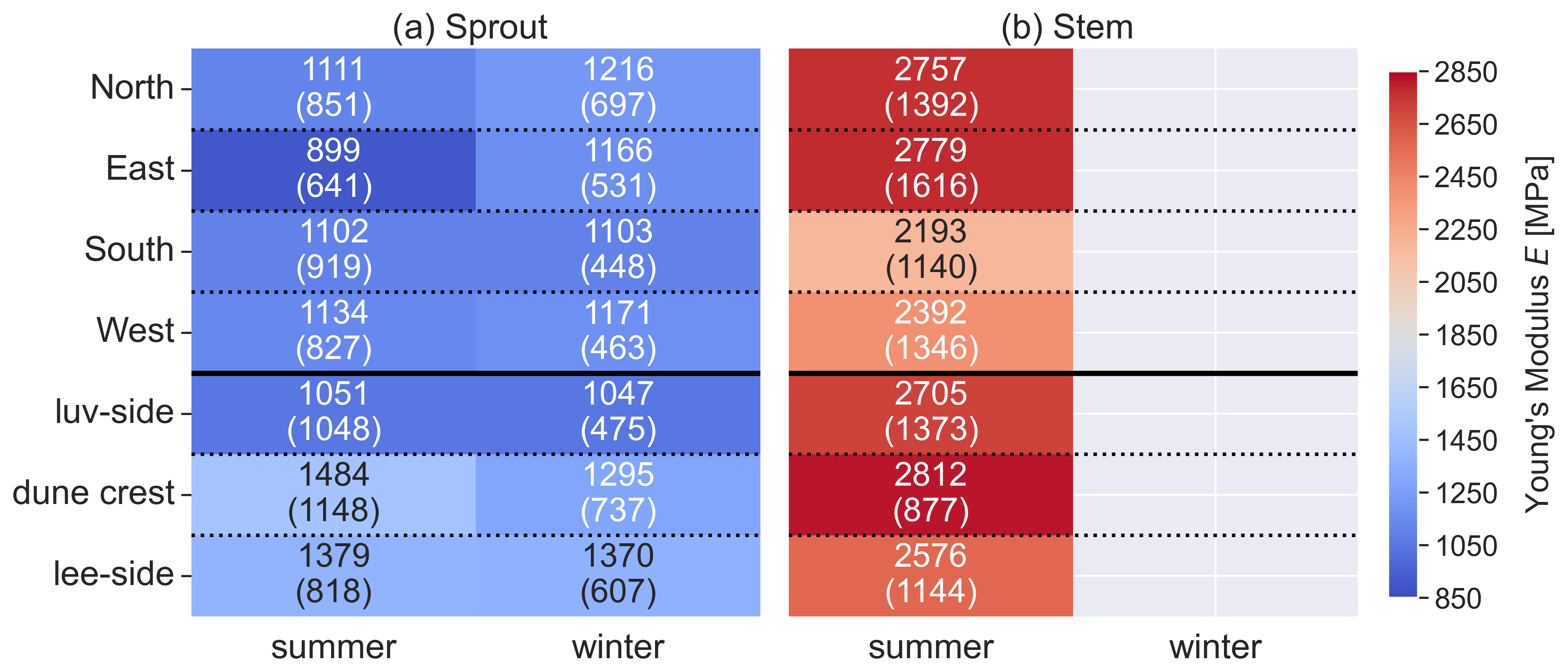

Figure E3 Heatmap showing Young's modulus E for (a) sprout and (b) stem in different zones and seasons. The values within the heatmap cells represent the mean Young modulus (in MPa), with the standard deviation in parentheses.

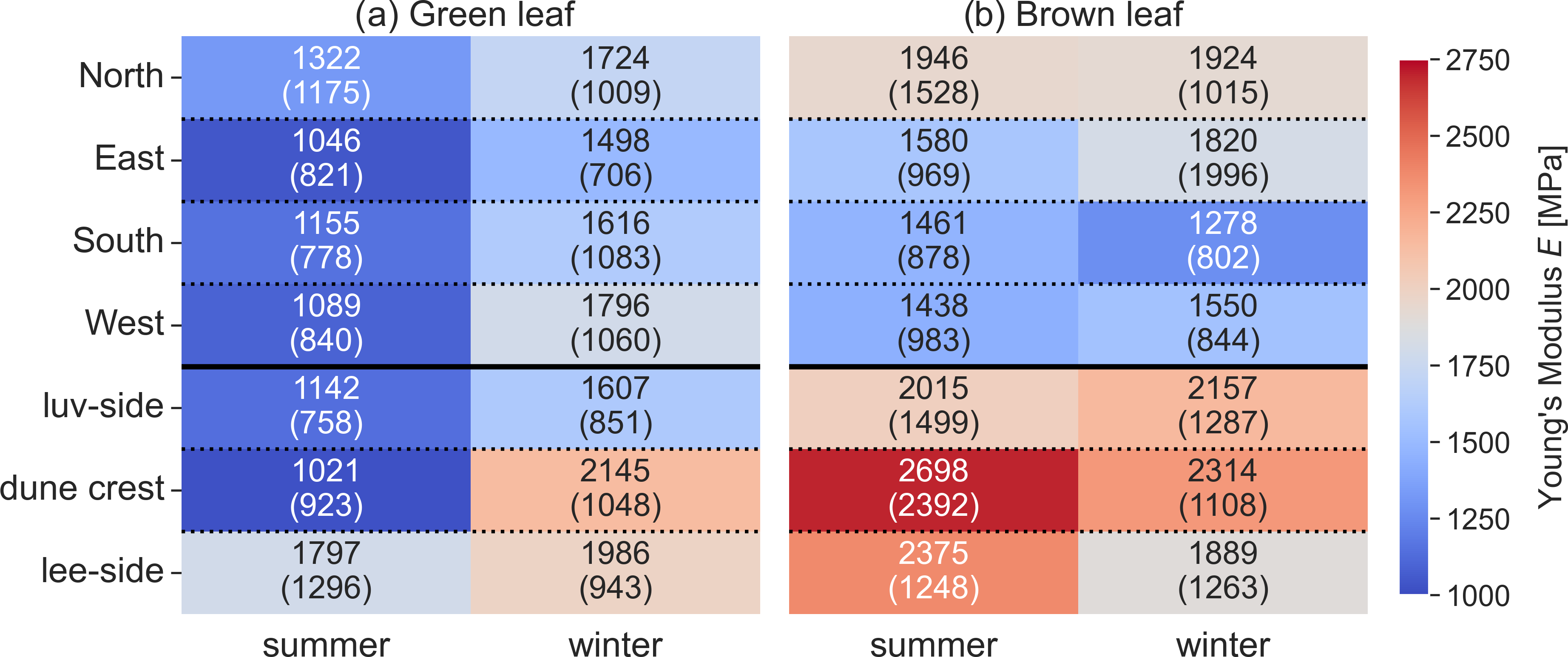

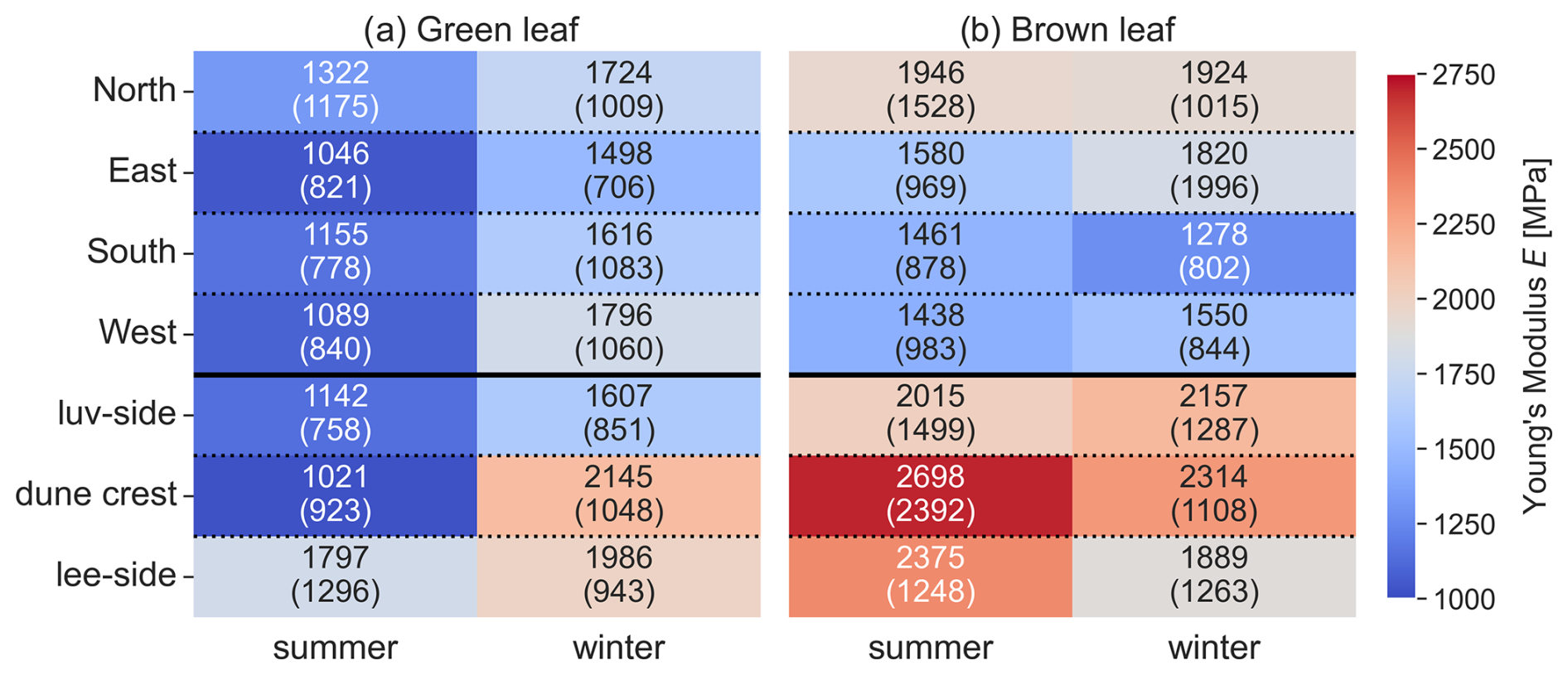

Figure E4 Heatmap showing Young's modulus E for (a) green leaf and (b) brown leaf in different zones and seasons. The values within the heatmap cells represent the mean Young modulus (in MPa), with the standard deviation in parentheses.
